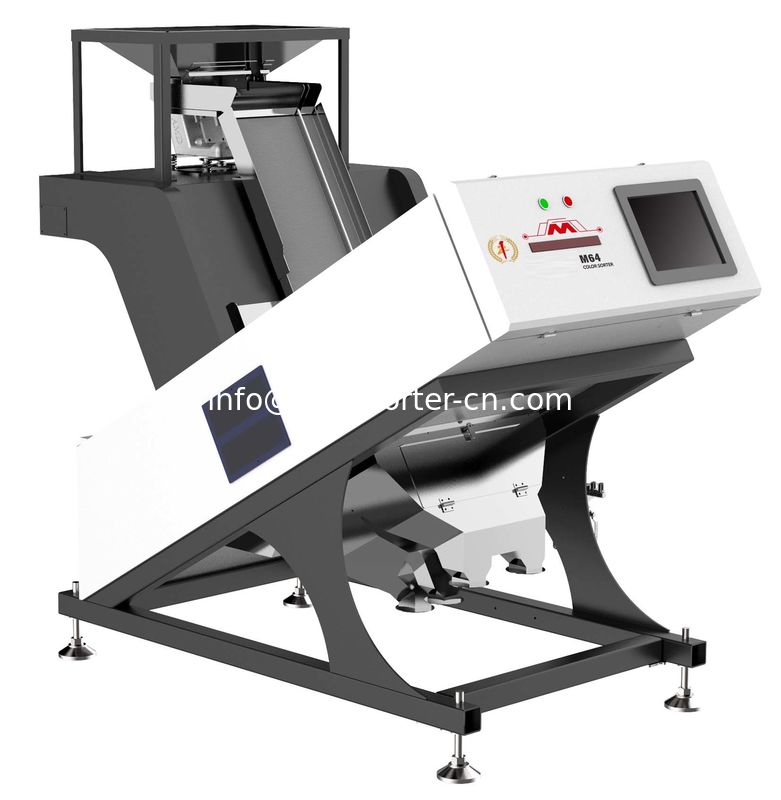

mini optical sorter for coffee beans

mini optical sorter for coffee beans

mini optical sorter for coffee beans

Product Details:

Place of Origin: China
Certification: CE,ISO9001,ISO18001,ISO14001
Model Number: RC1-64X

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 12000-15000USD
Packaging Details: Vacuum packing and Wooden case
Delivery Time: 10 days
Payment Terms: TT, MoneyGram, Western Union, Western Union, T/T, D/P, D/A
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Sorting Accuracy: 99.99% Structure: Compact
Advantage: High Cost&effective Color Sorter Advantage 2: Quick Return Of Investment
Type: Mini Optical Sorting Machine

How our mini color sorter machine can help you increase quality of your green coffee and roasted coffee?

Is your team spending too much time and attention sorting quakers,burnt beans and foreign material out of your speciality coffee? We want to help you take a leap forward towards to excellent and efficiency by providing color sorting technology for your roasted and green coffee.Let’s show you how easily our advanced color sorting technology can benefit your coffee business.





Traditional way

Time consuming

Limitation of human eyes





New way

250KG per hour

99.99% accuracy



It’s time to strive for excellence and efficiency

1,color sorting for green coffee

Optical sorting can reject colour defects such as discoloured beans,immature and insect damaged beans in ordinary,specialty and sun dried green coffee and foreign material application.



2,color sorting for roasted coffee

Optical sorting can separate under-roasted(lighter,white and immature) and over-roasted beans and foreign material for a better taste and quality.



Mini color sorter advantage

Automatic sorting parameter function

Cost effective color sorter

No changeover parts between products

Easy access for maintenance and cleaning

Minimum operator training required

Reverse sort option

Full color for subtle color difference

Quick return of investment

Portable

very small footprint

Suitable sorting range:vegetable seeds,coffee,soya,sesame seeds,rice,cereals,seed corn,beans.

Rejects:subtle color difference,discolor product,foreign materials,spot defects

Application:small and medium sized applications ;product R&D;Laboratory use


Mini optical sorter specification

Mini-32 Specification
Cameras Two RGB cameras for front view and back view,Toshiba camera sensor
Light resource LED
Channels 1 chute with 32 channels
Valve With 32 pcs of high speed ejectors
Capacity(kg/h) 500-700kg per hour depend on material type and impurity level
Power(kw) 0.5
Voltage(V) 110-250V/50-60Hz
Sorting accuracy 99.99%
Dimension(mm) 400*1000*1000,very short,portable
Air compressor only need 7.5kw,10HP,single phase air compressor is OK.
Weight(kg) 80



mini sortex machine

FAQ

1,Do you install the machine?

We don’t normally need install the machine.The machine has been designed in a way that is fairly simple to install with little skills.We will guide you in video.If you still need engineer for commissioning,we will send engineer to your site.100USD per day for our engineer.



2,What are the technical specification required for the air compressor? And can you provide it?

Air compressor with 7.5kw,10HP,single phase.

We recommend you purchase it from local market for the local service.In case you can’t get locally,we can provide you with it,but we can’t service it.



3,Will the machine electric be available for the electric in your country?

Our mini color sorter will come with appropriate electric for the country you select.



4,Does mini sorter has warranty? Can I get replacement?

The mini comes with one year warranty for the parts.If any parts have quality problem during one year ,our after sales team will send you the parts for free of charge and guide you how to fix it.











mini optical sorter manual.pdf
