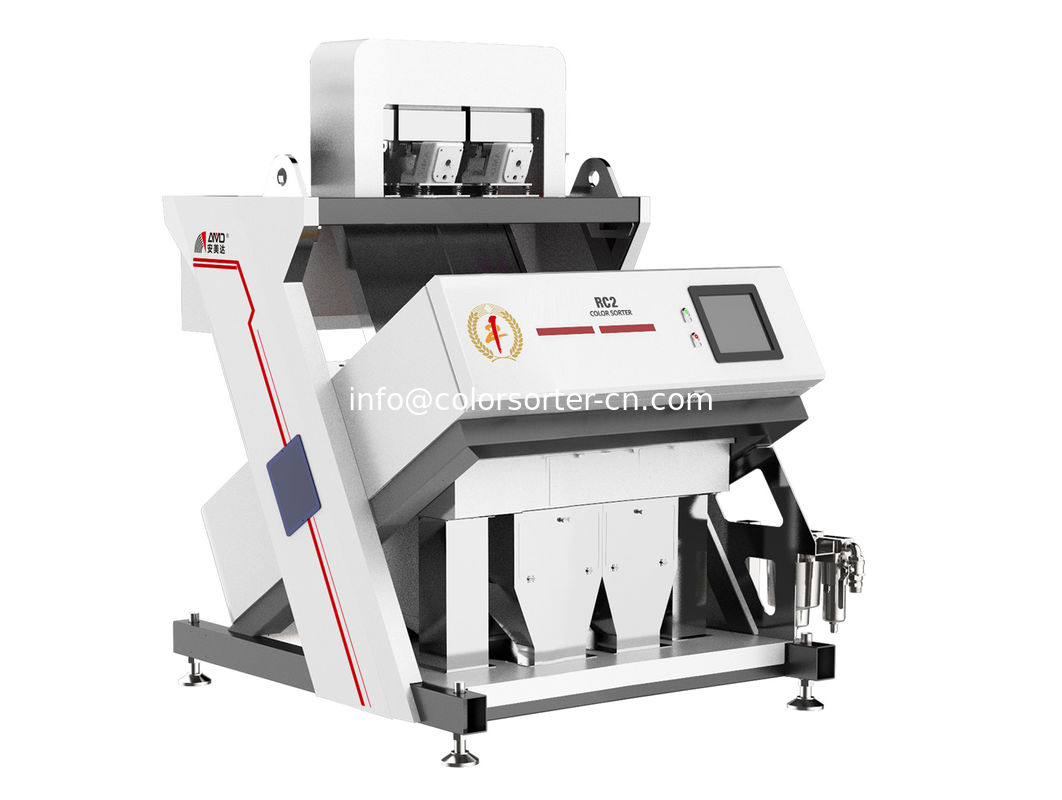

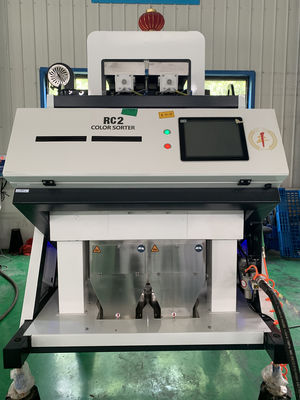

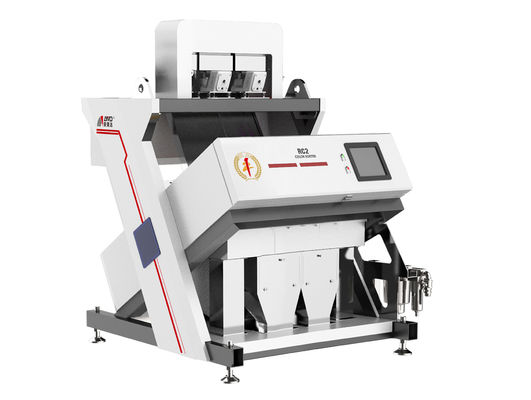

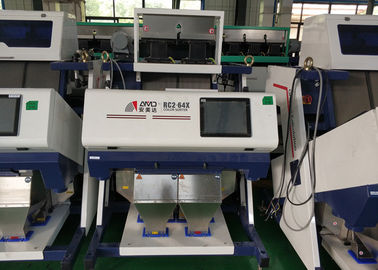

New type Beans Color Sorter Machine with high Capacity, Consistency, Precison,Reliability

New type Beans Color Sorter Machine with high Capacity, Consistency, Precison,Reliability

    • New type Beans Color Sorter Machine with high Capacity, Consistency, Precison,Reliability
    • New type Beans Color Sorter Machine with high Capacity, Consistency, Precison,Reliability
  • New type Beans Color Sorter Machine with high Capacity, Consistency, Precison,Reliability

    Product Details:

    Place of Origin: China
    Certification: CE,3C,ISO9001,IS014001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 15000-200000USD
    Packaging Details: Vacuum packing and Wooden case
    Delivery Time: 10 days
    Payment Terms: TT, D/P, D/A
    Supply Ability: 5000 sets per year,we are the biggest color sorter manufacturer in China
    Contact Now
    Detailed Product Description
    Application: Sorting Seeds By Color And Shape Sorting Accuracy: 99.95%
    Camera: Colorful Camera Camera Sensor: Toshiba Sensor From Japan
    Filter: SMC From Japan FPGA: ALTERA From USA, SAMSUNG Chip From Korea
    Aftersale Service: Engineers Available To Service Overseas Warranty: One Year

    Optical sorting solutions for

    1,the complete pulses:Designed for flexibility,the color sorter are capable of sorting multiple varieties of whole pulses at varying capacity requirements to match a customer's end product requirements.The machine can efficiently remove discoloured,splits ,spots and foreign material such as stones,sticks and mud balls.



    2,whole and split pulses:Our Color Sorter effectively remove subtle discolouration and challenging close color defects such as brown,yellow,chalky ,green and skin spots,delivering premium final product.

    optical sorting technology for Multi types Beans Color Sorter,Pulses Color Sorter

    3,Seed Spices: We deliver premium export quality final product and ensure the highest standards of food safety are met for a wide range of seed spices by efficiently rejecting discolored defects and foreign material such as stones,sticks and foreign seeds as well as reducing mycotoxin levels.



    4,Sesame seeds:Designed to meet various final product demand,our sorters efficiently remove spot defects,discolored defects and FM.Bringing excellcent quality products.

    optical sorting technology for Multi types Beans Color Sorter,Pulses Color Sorter


    Beans color sorter specification



    Model RC-2 RC-4 RC-6
    Throughput(T/H) 1.5~3 4~11 7~15
    Channels 128 256 384
    Chutes 2 4 6
    Light Source Led Light Led Light Led Light
    Pixel of Camera 5400 5400 5400
    Color Sorting Accuracy ≥99.99% ≥99.99% ≥99.99%
    Carryover rate ≥10:1 ≥10:1 ≥10:1
    Power(KW) 0.8-2 1.2~3.0 1.6~4.0
    Air pressure(Mpa) ≥0.6 ≥0.6 ≥0.6
    Voltage(v) 220V/50HZ 220V/50HZ 220V/50HZ
    Air consumption (L/min) 800-1300 1200-2500 1800-3600
    Weight(kg) 700 1100 1500
    Diamension(mm)L*W*H 1674* 1520*1800 1983*1520*1800 2655*1520*1800
    Package wooden case wooden case wooden case
    Note : The above impurities is around 3% . The Specific parameters will be different based on the raw material and impurities



    How does the color sorter machine work?

    New type Beans Color Sorter Machine with high Capacity, Consistency, Precison,Reliability

    Standard procedure of sorter’s operation can be described as follows.

    Input product is loaded in the sorter via in-feed hopper.With the help of vibration the material flows along the chute to the distribution channels.Then the product gets into the inspection zone,where it is checked by the high-tech sensors or CCD-cameras.Cameras ,having received the reflected light from the selected material,generate electric signal for computer operating system.



    Depending on the signals received from the optical system,the computer control system sends the command to open the pneumatic valve(the ejector)which blows away grains different in color.The good product directly flows into the goods product hopper.The reject is blown off to the discharging hopper.



    Most of the sorters have the re-pass option ensuring more accurate sorting of the grain and minimizing losses of the good product.





    Seeds Color Sorter performance on YouTube

    https://www.youtube.com/watch?v=vgUhNiEIl6s



    https://www.youtube.com/watch?v=ulJT-d4MKrQ



    https://www.youtube.com/watch?v=RO69WW97vXE



    https://www.youtube.com/watch?v=QOuVxXyxtIE
