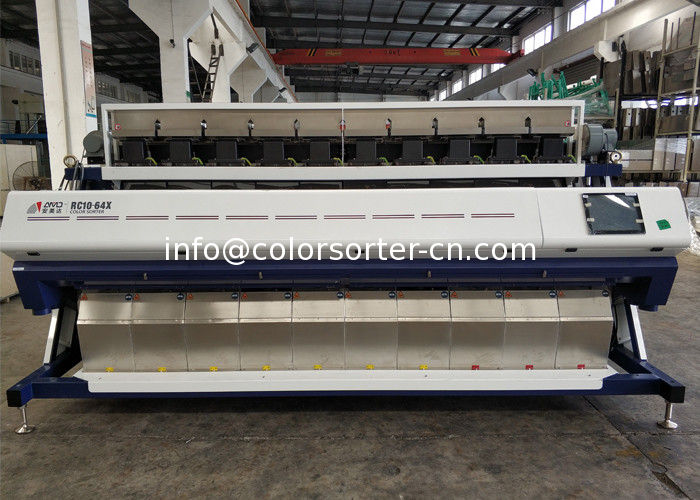

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system

Product Details:

Place of Origin: China
Certification: CE,3C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Vacuum packing and Wooden case
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 5000
Contact Now
Detailed Product Description
Application: Sorting Coffee Beans By Color And Size Sorting Accuracy: 99.5%
Camera: RGB Sensor: Toshiba From Japan
Filter: SMC From Japan FPGA: ALTERA Processor From USA, SAMSUNG Chip From Korea
After-sales Service: Engineers Available To Service Oversea Ejector: Matrix From Italy Or Customized
Sorting Function: Color And Shape Sorting At Same Time Warranty: One Year

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system



The Color Sorting System



In general,optical sorters feature four major components:the feed system,the optical system,image processing software and the separation system.The objective of the feed system is to spread product into a uniform monolayer so products are presented to the optical system without clumps,at a constant velocity.The optical system includes lights and sensors housed above and/or below the flow of the objects being inspected.The image processing system compares objects to user-defined accept/reject thresholds to classify objects and actuate the separation system.

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system

Color sorting for coffee beans solutions

1,Green coffee(colour sorting):Optical sorting can reject colour defects such as discoloured beans,immature and insect damaged beans in ordinary,specialty and sundried green coffee application.

2,Green coffee(FM sorting):Optical sorting can remove foreign material which has been missed or not targeted by the mechanical cleaning process such as sticks,stones,glass,shell and others caused by fermentation process such as sour beans.

Arabica and Robusta coffee defects

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system



3,Roasted coffee(colour sorting):Optical sorting can separate under-roasted(lighter,white and immature) and over-roasted beans for a better taste and quality.

4,Roasted coffee(FM sorting):it can remove FM(foreign material) such as sticks,stones and glass from roasted coffee which can not only compromise the appearance of the final product but can also damage mechanical equipment such as grinders.

Robusta coffee defects

Coffee Beans Color Sorter machine Unique 3D intelligent algorithm, plus Multi-spectrum view system





Coffee Bean Color Sorter Machine specificatoin

Model RC-2 RC-4 RC-6
Throughput(T/H) 1.5~3 4~11 7~15
Channels 128 256 384
Chutes 2 4 6
Light Source Led Light Led Light Led Light
Pixel of Camera 2048 2048 2048
Color Sorting Accuracy ≥99.99% ≥99.99% ≥99.99%
Carryover rate ≥10:1 ≥10:1 ≥10:1

We have many different models from 1 chute to 16 chutes to meet any different production capacity.



1)CCD Camera (2048 pixel)

Use the color CCD image acquisition system to acquire the comprehensive information of red,green and blue color ,the color sorter has the sensory ability of human eye,making better selection of materials and satisfying the requirements better.

The maximum resolution is up to 0.15mm, can accurately identify small defects and spots on raw materials and the high-precision special lens ensures clear images.

2)Main Board

Excellent rejection rate

Advanced image acquisition system intelligent image processing algorithms high quality nozzle system equal to excellent elimination rate.

3)Touch Screen

Simple optical system design,precise automatic correction system,combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use,ensuring the simple operation and the machine is easy to learn and use.

4)filter, the filter,air compressor and air tank.

5)LED Light

Led lighting system with radiation,long service life,low energy consumption,good performance.

Different raw materials require different spectra,we customize the light source according to the need of customer.

6)Valve

High-quality solenoid valve

Use high-quality ,high-frequency ,long service life ejector ,super low air consumption guaranteed the biggest capacity,excellent rejection output .

6)Unique Trough Configuration

The special anodizing technology can ensure production volume as well as conformity with the international standard.

The machine can be equipped with cascade late and narrow chute channel to meet the color sorting for various materials.
