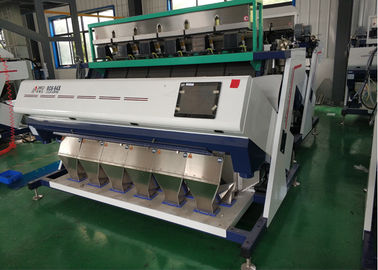

Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts

Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts

    • Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts
    • Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts
    • Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts
    • Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts
    • Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts
  • Optical Sorting Machine for peanuts.China manufacturer of color sorter machine for selecting peanuts

    Product Details:

    Place of Origin: China
    Certification: CE,3C,ISO9001,IS014001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 15000-900000USD
    Packaging Details: Wooden case and vacuum packing
    Delivery Time: 10 days
    Payment Terms: TT, D/A, D/P, Western Union
    Supply Ability: 5000 sets per year
    Contact Now
    Detailed Product Description
    Working Application: Color Sorting Peanut By Color And Shape Sorting Accuracy: 99.95%
    CCD Camera: RGB,full Color CCD Sensor: Toshiba From Japan
    Air Filter: SMC From Japan FPGA: ALTERA From USA, SAMSUNG Chip From Korea
    Aftersale Service: Engineers Available To Service Overseas Warranty: One Year

    Peanut processing has four steps (De-Shelling, Pre-Cleaning, Roasting, Cooling, Blanching and Peanuts Color Sorting) . This four steps has been discussed as follows;

    1. De-Shelling
    Shelling begins with separating the foreign materials (soil, stems, and leaves) with a series of screens and blowers. The cleaned peanuts are then sized with screens (size graders). The nuts are then transferred to the de-stoner machine where stones and other heavier materials are removed. Next, shells of the sized peanuts are crushed. Shells are aspirated from the peanut kernels. The crushed shells and peanut kernels are then separated with oscillating shaker screens.

    2. Pre-Cleaning
    Cleaning removes foreign materials like soil, leaves, metals and stones using blowers, de-stoner and magnet. It also sizes the peanut with screens. So, based on their size the peanut will be graded into under-size, oversize and middle size peanut. Peanuts with proper size (for roasting) will be transferred to the electric eye sorter machine. Optical sorting technology removes the most defects nut based on their color.
    2.1. Roasting
    It is a continuous roasting with electrical roaster, peanuts move through an oven on a conveyor from the feeder and hot air, that roasts the peanuts, moves counter current. In this system, the peanuts are agitated with screw to ensure that air passes around the individual peanut promote an even roast.

    2.2. Cooling
    Cooling occurs on conveyors where large quantities of air are blown over the peanuts immediately following roasting. Cooling is necessary to stop the roasting process and maintain a uniform quality.

    3. Blanching
    Blanching removes the skin of the peanut after roasting. The roasted and cooled peanuts are passed through either Roller or grooved rubber to rub off the skin from roasted peanut.

    4. Optical Sorting for peanuts
    Sorting is done by hand as well as using CCD optical sorter. The blanched peanuts are transferred to the CCD color sorter machines automatically. Electric eye sorter separate infected and good quality peanuts based on their color and size. As a result, fungus infected peanuts are rejected by the machine. Peanut which are accepted as a good quality by the sorter machine will be sorted again by hand. The sorted peanut are then bagged in bags and sample will be taken from each bag for Aflatoxin analysis.







    Peanuts kernel and in-shell Optical Sorting

    Delivering maximum quality and meeting stringent food safety requirements.

    Zhongke optical sorting technology can sort different varieties of peanuts including in-shell (Spanish or Valencias) with red or pink skin, blanched or roasted. The ZL or LD range can efficiently remove defects with certain discolorations, in-shell, split, over/undersized or misshaped nuts as well as foreign material, including sticks and stones.

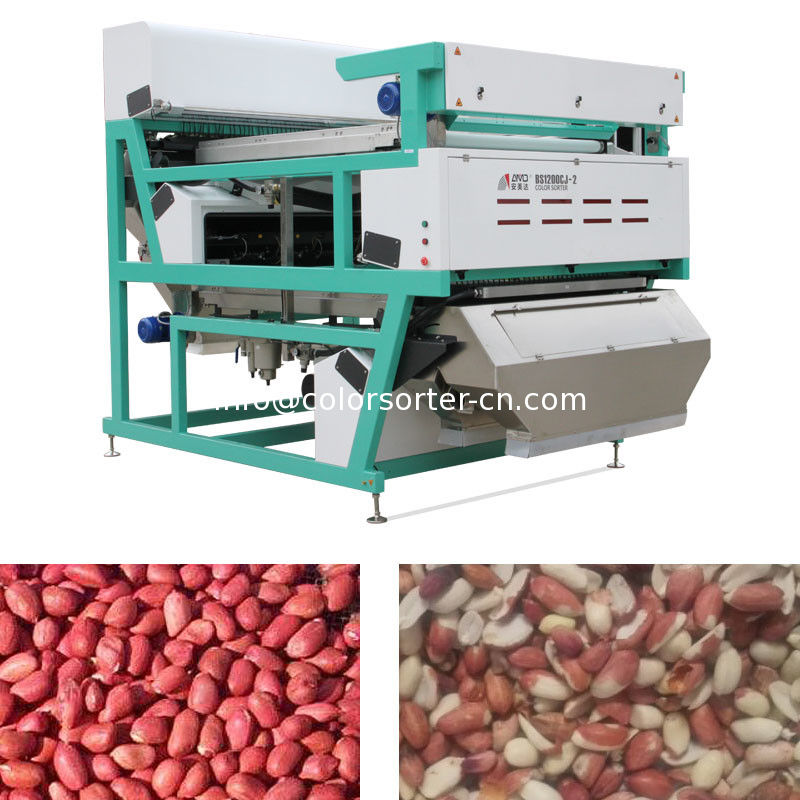

    Color sorting samples for peanuts in shell and peanut kernel

    color sorting for peanut in-shellcolor sorting for kernel



    Shape size sorting integrated into the system

    Size: Under and over sized objects for greater value

    Shape: Misshapen product and foreign material of the same color

    Color: Color defects by individual or combined defect area

    color and shape sorting



    Our Peanut Optical Sorting Machine Specification

    Model

    Capacity

    (T/H)

    Carryover

    (Bad:Good)

    Accuracy

    (%)

    Voltage

    (V/HZ)

    Power

    (KW)

    Weight

    (KGS)

    Dimension

    (MM)

    RC1 0.5-3 10:1 >99.9 220/50 0.5-0.8 270 875x1550x1320
    RC2 1-6 10:1 >99.9 220/50 0.65-1.1 460 1240x1710x1720
    RC5 2.5-15 10:1 >99.9 220/50 1.3-2.2 1030 2185x1710x1720
    RC7 3.5-21 10:1 >99.9 220/50 1.9-3.2 1350 2815x1710x1720
    RC8 4-23 10:1 >99.9 220/50 2.2-3.7 1510 3130x1710x1740
    RC10 5-30 10:1 >99.9 220/50 2.5-4.2 1850 3760x1710x1740







    Peanut Optical Sorting video on YouTube channel



    https://www.youtube.com/watch?v=H-M5C5V9qZA



    https://www.youtube.com/watch?v=3Zl8AkSR1Zg
