Manifold units for air ejection sorting systems

Manifold units for air ejection sorting systems

Manifold units for air ejection sorting systems

Product Details:

Contact Now
Detailed Product Description

GM820 SERIES Nozzles / 820 Series valves: form 50 up to 300 Flow rate: 100 l/min, 140 l/min, 180 l/min, 220 l/min Available Pitches: from 6 mm up to 25 mm (6,15 | 6,35 | 6,4 | etc.) Response time: down to 1 ms Pressure range: 2-12 bar Inlet ports: n.2 G3/4” Electrical connection: IP62 moulded-in cables, integrated M8 connector Customised solutions available upon request

P (pitch) = from 6 mm onward A (inlet interfaces) = 25 mm B+C (50 nozzles manifold size, pitch 6 mm) = 344 mm B+C (50 nozzles manifold size, pitch 6,4 mm) = 363 mm D (additional outlets) = P x additional outlets E (total manifold length) = B+C+2xA+D

Manifold units for air ejection sorting systems

Manifold units for air ejection sorting systems

GMT820 SERIES TWIN Nozzles / 820 Series valves: form 100 up to 600 Flow rate: 100 l/min, 140 l/min, 180 l/min, 220 l/min Available Pitches: from 3 mm on, vertical offset 10 mm Response time: down to 1 ms Pressure range: 2-12 bar Inlet ports: n.4 G3/4” P (pitch) = from 6 mm onward A (inlet interfaces) = 25 mm B+C (50 nozzles manifold size, pitch 6 mm) = 344 mm B+C (50 nozzles manifold size, pitch 6,4 mm) = 363 mm D (additional outlets) = P x additional outlets E (total manifold length) = B+C+2xA+D Twin configuration with 10 mm vertical offset between upper and lower row of nozzles



GM840 SERIES Nozzles / 840 Series valves: form 50 up to 300 Flow rate: 300 l/min (150 l/min + 150 l/min Multiflow architecture) Available Pitches: from 6 mm up to 25 mm (6,15 | 6,35 | 6,4 | etc.) Response time: down to 2 ms Pressure range: 2-8 bar Inlet ports: n.2 G1” Electrical connection: IP62 moulded-in cables, M8 connector Custom surface treatments available Custom stainless steel replaceable outlet nozzles modules available Integrated speed-up driver versions available for easy installation

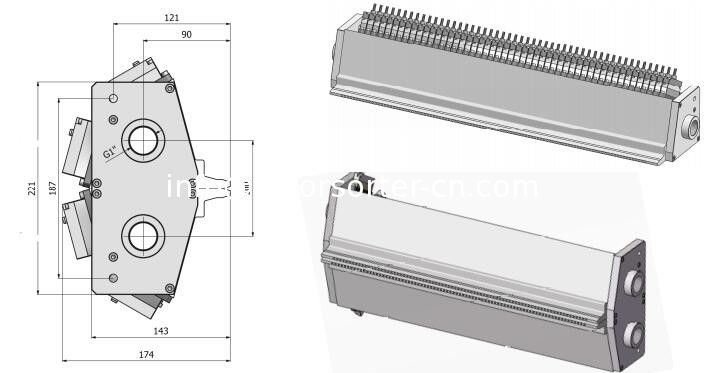

Available also in TWIN configuration as GMT840 SERIES with 10 mm vertical offset between upper and lower row of nozzles
