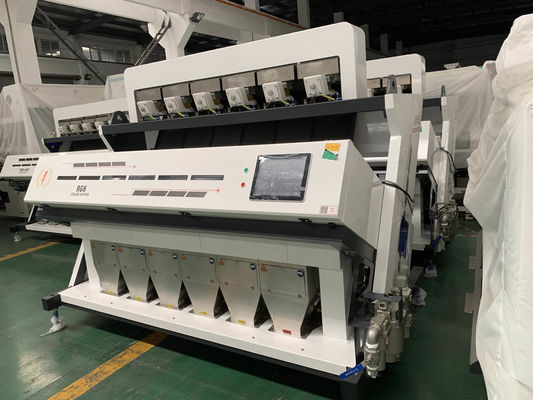

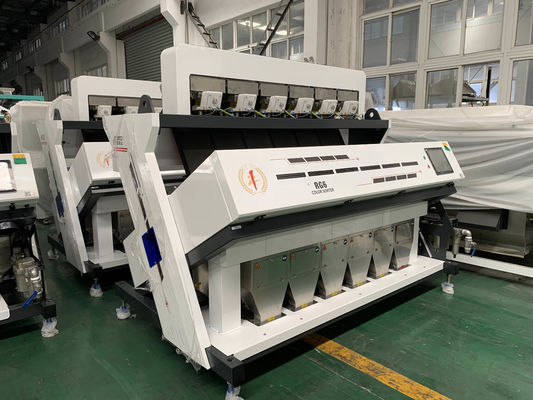

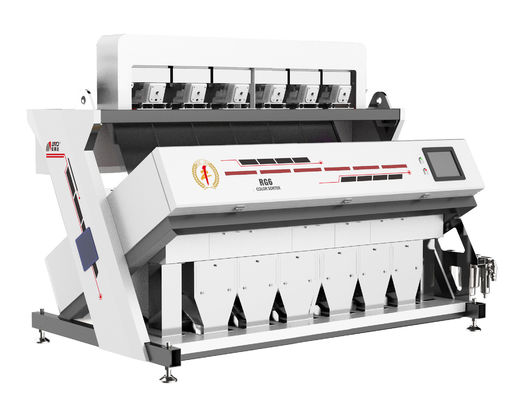

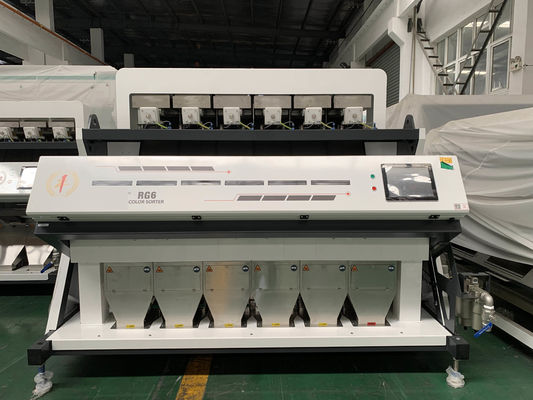

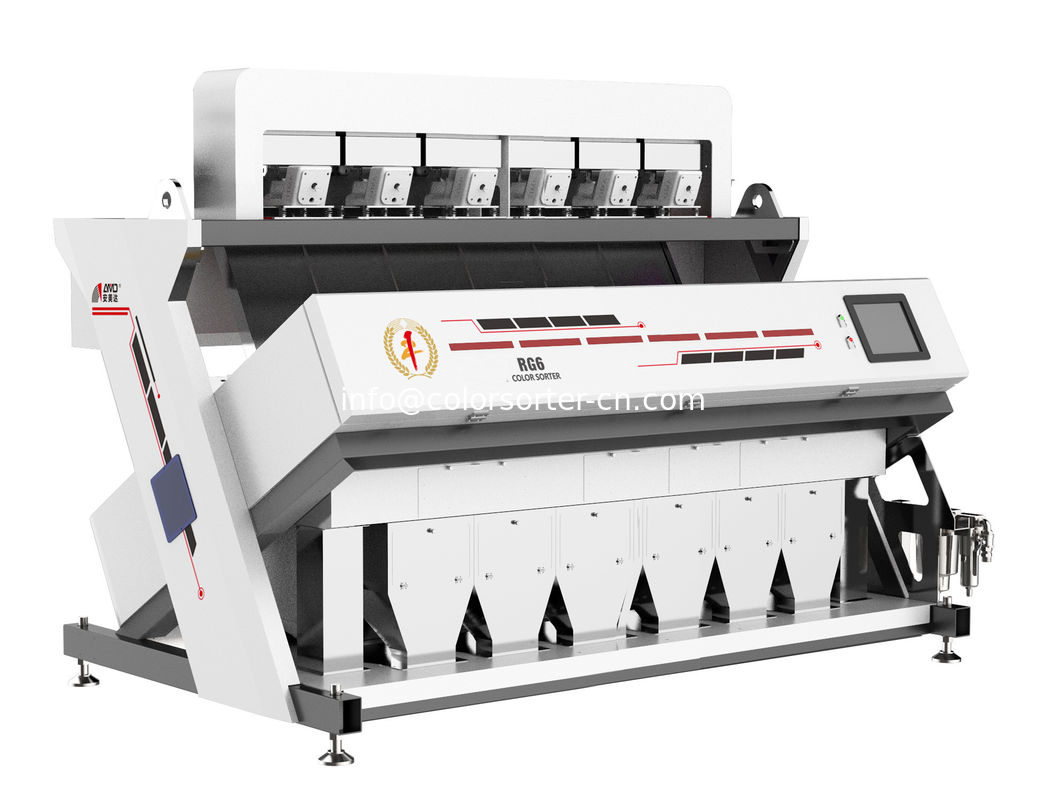

RG6 ,High-speed Fifth-generation Smart Chip,rice color sorter machine

Place of Origin:	China
Certification:	CSA,CQC,CE,IS09001,IS014001,ISO18001

Minimum Order Quantity:	1
Packaging Details:	Wooden case and vacuum packing
Delivery Time:	10 days
Payment Terms:	TT, D/A, L/C
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Application:	Rice Color Sorting	Sorting Accuracy:	99.99%
Carryover Ratio(bad:good):	120:1	Camera Sensor:	Toshiba,5400 Pixels
Filter:	SMC From Japan	Warranty:	One Year
Dimension(mm):	266318291887	Executing Unit:	384
Power(kw):	2.6-4.4	Air Consumption(L/MIN):	<3000
FPGA:	ALTERA From USA, SAMSUNG Chip From Korea

Function:Intelligent rice color sorter, flexible with multiple color sorting plans

RG rice color sorter features

AI intelligent sorting
Internet + mobile APP, realize remote control, smart backup, voice recognition
Zhongke Optic-electronic Big Data
Cloud storage, massive database, can remotely assist customers to adjust the machine without waiting for after-sales personnel to arrive on site.
Intelligent diagnosis
Real-time intelligent analysis of the operating status of the system to ensure reliable operation of the machine.
Self-coordination background
The brightness of the background light can be adjusted freely, and the colorful background can be switched at will
InGaAs infrared imaging system(optional)
360-degree infrared matrix imaging, color sorting + shape sorting + infrared sorting, effectivey remove non-rice miscellaneous
Fifth generation FPGA smart chip
Storage capacity increased by 100%, computing unit increased by 40%
Super alloy high frequency solenoid valve
National patent, high frequency and low consumption, wear-resistant super alloy, lifetime matching

Item	Description	RG	RG*	RG+	RGI	M80
Core Components	Hd Industrial-grade Lcd Display	●	●	●	●	●
	High-speed Fifth-generation Smart Chip	●	●	●	●	●
	Super Alloy High Frequency Ejectors	●	●	●	●	●
	Flexible Feeding System	—	●	●	●	—
	Material Level Monitoring System	○	○	○	○	—
Imaging System	Hd Visible Light	●	●	—	—	●
	Hd Visible Light + Dual Integrated 850 IR	—	—	●	—	—
	Hd Visible Light + InGaAs IR Imaging System	—	—	—	●	—
Pneumatic System	Three-dimensional Ring Dust Removal System	●	●	●	●	—
	High Efficiency And Energy Saving Gas System	●	●	●	●	●
	SMC Air Source Filtration System	●	●	●	●	●
Machine Protection	Chute Cover	○	○	○	○	○
	Feeding Device	—	●	●	●	—
	Soft Landing	●	●	●	●	○
Smart Application	Output And Miscellaneous Statistics	●	●	●	●	—
	Intelligent Fault Diagnosis	—	●	●	●	●
	Audible Alarm	—	○	○	○	—
	Intelligent Cleaning	—	●	●	●	—
	AI Intelligent Sorting	○	○	○	○	—
	Smart Backup	○	○	○	○	—
	Remote Debugging	●	●	●	●	—
	Online Simulation	●	●	●	●	●
	Minimalist UI	●	●	●	●	●
	Shape Sorting Function	●	●	●	●	●
	Center Positioning	●	●	●	●	●
	Balanced Flow Rate	○	●	●	●	—
Remarks: ● standard ; ○ optional ; — no; RG model feeding protection is a simple protective cover

Rice Color Sorter Specification

Rice optical sorter installation cases
