Place of Origin: | China |
Certification: | CE,3C |
Minimum Order Quantity: | 1 |
---|---|
Price: | 15000-100000USD |
Packaging Details: | Wooden case and vacuum packing |
Delivery Time: | 25 days after deposit or L/C |
Payment Terms: | TT, T/T, D/P, D/A, L/C |
Supply Ability: | 1000 |
Application: | Sorting Rice | Sorting Accuracy: | 99.99% |
---|---|---|---|
FPGA: | ALTERA From USA, SAMSUNG Chip From Korea | Camera Sensor: | Toshiba From Japan |
Air Filter: | SMC From Japan | Warranty: | One Year |
-Ispiża effettiva ross kapaċità għolja sorting.The ġdida Kulur sorter hija l-ewwel għażla għall-proċessuri ross li jfittxu sjieda, assigurazzjoni u l-funzjonalità tal-wirt issortjar ottiċi u t-teknoloġija bi prezz raġonevoli.
magna sorter kulur ross hija ideali għall-proċessuri ross li varjetajiet tip differenti ta 'ross u fil differenti pproċessar stages.The firxa issortjar huwa adattat għall-proċessuri li jitolbu l-ogħla fil-kwalità tar-ross, li joffru preċiżjoni għażla li jimmassimizzaw il-produzzjoni u l-profitti jiżdiedu.
issortjar ross mhux maħdum:
Hija tista 'effettivament tneħħi difetti kemm tipiċi u ta' sfida u l-materjal barrani; discolouredgrains, ħbub ġibsi, istrixxi nuħħala, bsaten, ġebel u żrieragħ barranin mhux mixtieqa, li jħallu t-tip lest, nodfa, u sikuri.
issortjar ross abjad:
nistgħu issolvi aħmar, isfar, u aħdar qamħ, ross abjad ħafna, ross discolored u immaturi, ħbub blackspotted bil-post ta 'inqas minn 0.25mm.
issortjar ross mgħolli nofs
Nistgħu issolvi iswed u maħruqa qmuħ, discolored, spotted.And iswed xi oħrajn ħbub difettużi.
Proċedura standard ta 'operazzjoni sorter jistgħu jiġu deskritti kif ġej:
prodott input hija mgħobbija fil-sorter permezz-f'għalf hopper.With-għajnuna tal-vibrazzjoni flussi materjal tul il-chute mad-distribuzzjoni channels.Then-prodott jidħol fil-żona ta 'spezzjoni, fejn tiġi verifikata mill-sensors ta' teknoloġija għolja jew dataset -cameras.Cameras, wara li rċeviet id-dawl rifless mill-materjal magħżul, jiġġeneraw sinjal elettriku għas-sistema operattiva tal-kompjuter.
-elettronika Affidabbli ħardwer
Il-hardware hija organizzata fil-bordijiet elettroniċi faċilment sostitwibbli,
jużaw it-teknoloġija FPGA aħħari;
funzjonijiet Awto-kontroll, bħal awto-dijanjosi u l-awto-kalibrazzjoni huma standard fuq kull apparat li jissortja;
Back-up tas-softwer operattiv minn USB abbord.
L-elaborazzjoni sinjal veloċità għolja u l-komunikazzjoni lill tkeċċija sistema tippermetti prestazzjoni eċċellenti.
kumpanija Altera s b'veloċità għolja ipproċessar FPGA mill-Istati Uniti
ċippa SAMSUNG mill-Korea t'Isfel
Toshiba kamera sensur mill-Ġappun
SMC filtru bl-ajru mill-Ġappun
swiċċ arja Schneider u swiċċ buttuna minn Franza
Medja provvista ta 'enerġija Ukoll mit-Tajwan
Matrix ejector mill-Italja (ottiċi)

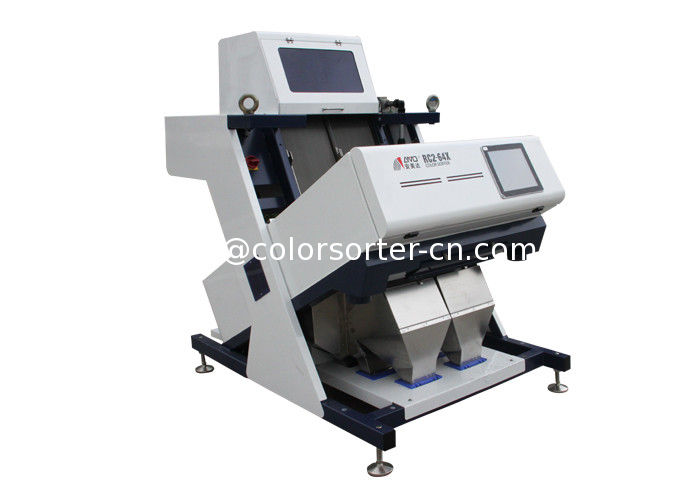

Rice Color Sorter Machine specification
Model | RC-10 | RC-8 | RC-6 |
Channels | 640 | 512 | 384 |
Chute | 10 | 8 | 6 |
Throughput(T/H) | 16-30 | 12-24 | 8-16 |
Sorting Accuracy (%) | > 99.97 | >99.97 | >99.97 |
Optimized carryover(bad: good) | > 8:1 | >8:1 | >8:1 |
Channels preset for primary sorting and re-sorting | 448:192 | 384:128 | 256:128 |
Voltage (V) | ~220(50Hz) | ~220(50Hz) | ~220(50Hz) |
Power of the main machine (KW) | 3.2 | 3.0 | 2.2 |
Air Pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
Air Consumption (m³/min) | < 3.6 | <3.0 | <2.5 |
Weight (Kg) | 1100 | 900 | 850 |
Dimension (L x W x H)(mm) | 2595×1450×2127 | 2043×1410×2040 | 1920×1410×2040 |
Remark:We have many models from 1 chute to 16 chutes for option to meet any different production capacity.
