|Place of Origin:||China|
|Model Number:||Z-1 to 16|
|Minimum Order Quantity:||1|
|Packaging Details:||Vacuum packing and Wooden case|
|Payment Terms:||TT, MoneyGram, Western Union, D/P, D/A|
|Number Of High-speed Pneumoallocators:||From 32 To 896||Cleanness Of A Suitable Product:||99.99%|
To make a competitive product with minimal expenses is a purpose of each and every agricultural producer. Only the advanced and innovative technologies that are realized in the Color Sorter are capable to cope with this.

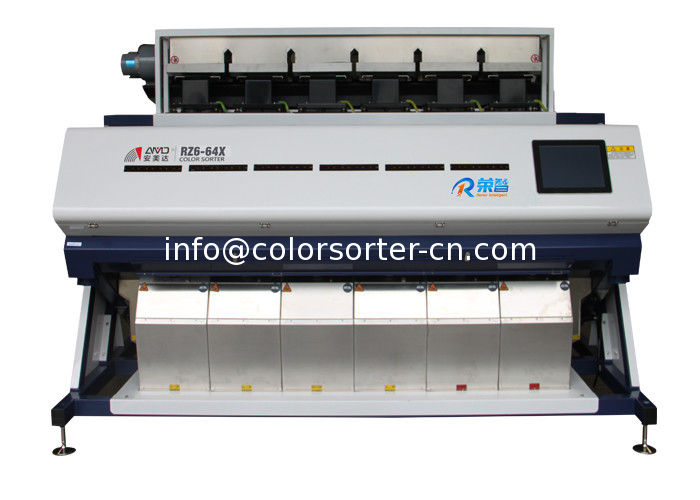

The Color Sorter is intended for sorting grain products on the color base.
It automatically rejects the damaged grains or kernels that are dif er by color, as well as quickly and ef ectively separates a good product from various impurities. The family of the Color Sorterscharacterised by the following:
high level of cleaning - up to 99,9 %;
high capacity - up to 30 t/h; *
universality - separation of various products
The Zhongke Color Sorters are ef ectively used in seed-growing, crop sciences, cereal processing industry. It sorts grain, leguminous,olive cultures, and also products of their processing.Using the Color Sorters the manufacturer receives unprecedented quality of the separated cultures whether it be oats, wheat or sunflower.
Sorting by color is capable to make your product perfect!
1 - frame;
2- loading hopper;
3 - shaking feeder;
4 - sack chute;
5 - photoelectronic module;
6 - control panel;
7 - pneumoelectronic
8 - system of air preparation;
9 - receiving chute;
The grain pile comes into the loading hopper, whence it goes into the shaking feeder 3. The shaking feeder 3 evenlyand with f xed productivity delivers the grain pile into the sack chute 4.
Being dispersed on the sack chute
and being leveled in a single-layered
stream the grain pile comes into the
revision module. Two video cameras
are established on the both sides of
the control zone. The single-layered
stream of grain pile coming from the
sack chute is scanned by cameras. The data from video cameras comes to the computing block which analyses the seeding images. By the results of the image analysis the signals which comes to the electronic block are formed. According to the air impulse
the valves open at the moment when the unconditioned grain is f ying in an operative zone of an air impulse.
The air impulse compressed under
air pressure (0,4...0,6 Mpa) with the
duration of the milliseconds beats
out the unconditioned grain into the
corresponding reception module. The trajectory of the conditioned grain flight corresponds to its hit into the hooper of the cleared product.
Requirements for installation of the Color Sorter
The Color Sorter should be maintained in premises with an artif cial adjustable climatic conditions (exlude an inf uence of the direct and difuse sunlights, an atmospheric precipitation, a wind, sand and a dust of
external air; moisture condensation), with an ambient temperature from +1 °С up to +30°С. For convenient operation there should be a free space around the Color Sorter, minimum 1 m. The compressor with drying and freezing device should be installed together with the Color Sorter. The compressor’s capacity should not be less than 800 l/minutes. Working pressure should be 8...10 atm.There should be a storage bin for a
preliminary reception of the processable grain pile with the capacity minimum 2 m 3 in the technological line in front of the Color Sorter. From the Color Sorter’s top and bottom reception hoppers there should be organized suction pump for the dusty air with the charge not less than 1000 m 3/h* * At the high level of the dust content of initial grain pile it is necessary to increase the aspiration charge.
