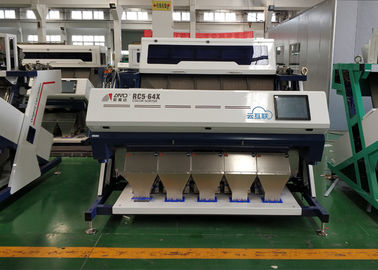

Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice

Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice

    • Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice
    • Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice
    • Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice
    • Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice
  • Rice optical sorting machine,Rice Color Sorting Machine,optical sorter for rice

    Product Details:

    Place of Origin: China
    Certification: CE,3C,IS09001,IS014001

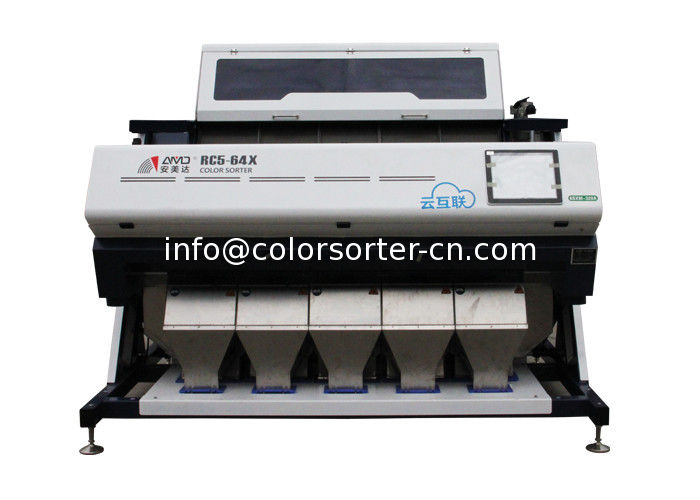

    Model Number: RC5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 30000-50000/SET
    Packaging Details: Wooden case and vacuum packing
    Delivery Time: within 15 days after down payment
    Payment Terms: TT, D/A, Western Union, MoneyGram,Paypal
    Supply Ability: 5000 sets per year
    Contact Now
    Detailed Product Description
    Application: Sorting Rice Sorting Accuracy: 99.99%
    FPGA: ALTERA From USA, SAMSUNG Chip From Korea Camera Sensor: Toshiba,5400 Pixels
    Filter: SMC From Japan Warranty: One Year
    Dimension(mm): 1610*1630*2050 Executing Unit: 320
    Power(kw): 2.6 Air Consumption(L/MIN): 1300-2200

    RGB color sorter for rice sorting solution
    Rice color sorting machine also named Rice optical sorting machine, it is according to the color differences of granular materials in raw rice: like stone,bad rice,black rice, half husked rice etc. using high-resolution CCD optical sensor to separate different granular materials, automatic sorting heterochromatic particles out of rice raw materials, so as to removal of impurities and enhance the quality of rice





    Rice optical sorting machine working process
    First of all, the rice is milled in the milling plant, taken through the paddy boiling unit, drier, destoner, husker, huller /sheller and then the produced final rice is taken to the color sorter machine. In this stage, the mixture raw rice will go into the hopper on top of the machine by elevator and then the rice will flow down along the chutes of colour sorter. Chutes of colour sorting machine will make rice flow streamlined for scanning by CCD sensors in scanning area, The moment the camera detects any color defects, the camera instructs the ejectors fitted in the machine to open the nozzle. The nozzle is connected to valves containing compressed air. This air is then used to shoot out the color defected material from the input rice. The types of defects in rice are: black tipped chalky, yellow, mouse droppings, immature grain, etc.

    rice processing


    Our rice color sorter machine technology :

    1,Advanced LED optical design system with thermal dissipation.High brightness,steady temperature LED lighting.
    2,Front and rear optical system with high-resolution RGB full color cameras.Original imported sensor with pixel 5400 elements.
    3,Customized shape and size sorting for different materials,
    4,Control and adjustment of the defect size
    5,Targeting location algorithm
    According to different material characteristics,it provides accurate calculation to material center,which can achieve a hundred percent sorting and increase the production substantially.
    6,Program setting and adjustment are performed through a user–friendly software which allows the acquisition of the product image to easily establish the defective elements to sort out.
    7,Super large capacity processing chip:scan speed is greater than 30000 times/sec and the overall performance of the system is increased by 3 times.
    8,High-frequency solenoid valve:reduces carryover ratio with working life over 8 billion blow times.
    9,304 stainless steel for hoppers.
    10,Anodized aluminum for the chutes.
    11,Automatic cleaning system of the optical boxes.
    12,International famous brand components to get excellent sorting performance and long-term running stability.



    Rice color sorter specification

    Rice color sorter model RC-1 RC-2 RC-3 RC-4 RC-5 RC-6 RC-7 RC-8 RC-10 RC-12
    Channels 64 128 192 256 320 384 448 512 640 768
    Capacity(t/h) 0.5-3 1.0-4.0 2.0-6.0 3.0-8.0 5.0-10 6.0-12.0 7.0-17.0 8.0-20.0 10.0-25.0 12.0-30.0


    Remark:We have many models from 1 chute to 16 chutes for option to meet any different production capacity.

    rice color sorting samples

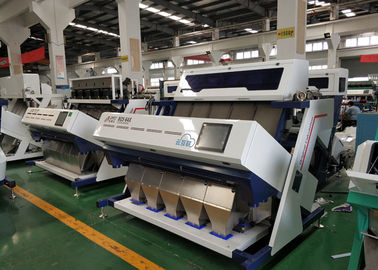

    rice optical sorting machine

    china sortex machine
