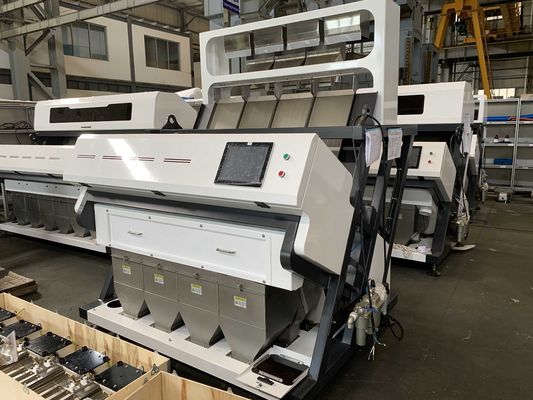

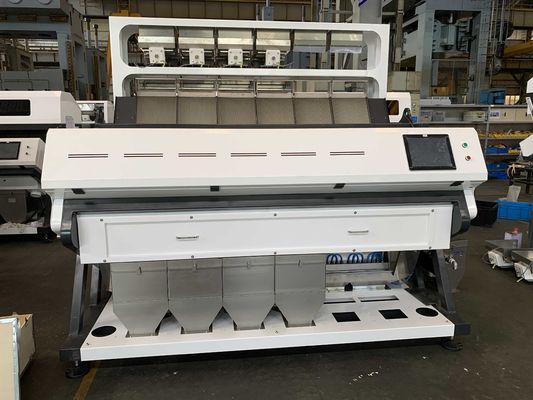

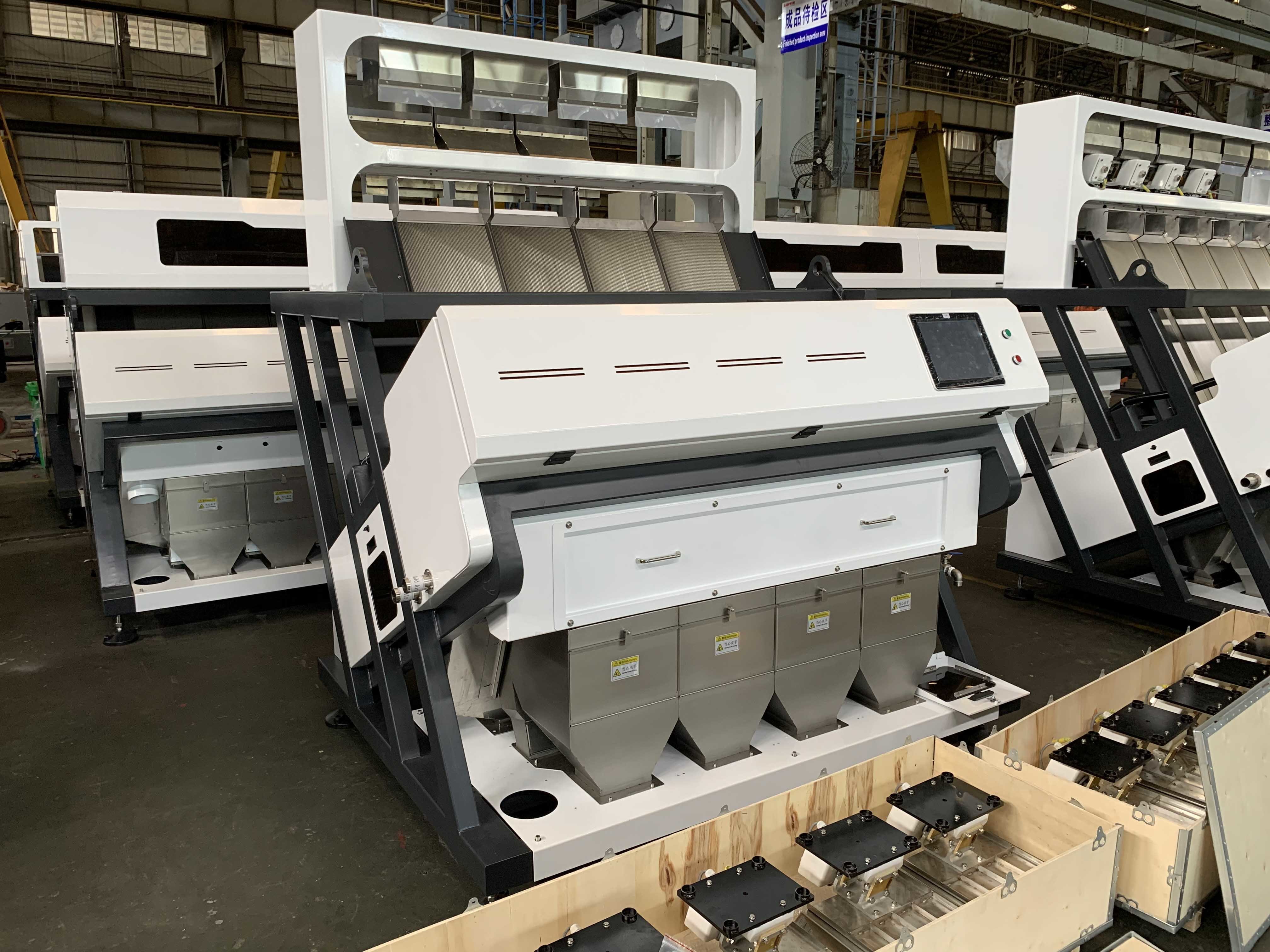

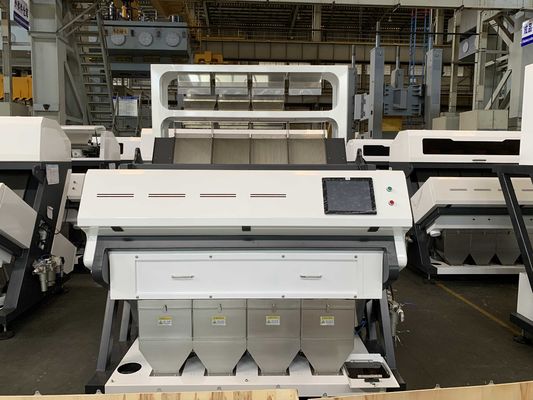

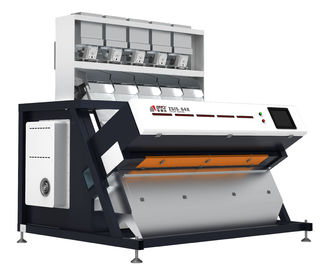

Infrared sorting machine sort the plastic by material type ,to solve problem of plastic with same color

Infrared sorting machine sort the plastic by material type ,to solve problem of plastic with same color

    • Infrared sorting machine sort the plastic by material type ,to solve problem of plastic with same color
    • Infrared sorting machine sort the plastic by material type ,to solve problem of plastic with same color
  • Infrared sorting machine sort the plastic by material type ,to solve problem of plastic with same color

    Product Details:

    Place of Origin: China
    Certification: CE,3C,ISO9001,IS014001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 15000-90000USD
    Packaging Details: Wooden case and vacuum packing
    Delivery Time: 10 days
    Payment Terms: TT, L/C, D/A, D/P, Western Union
    Supply Ability: 5000 sets per year
    Contact Now
    Detailed Product Description
    Application: Remove PVC From PET



    How to sort the different plastic if the color is same? How to remove PVC from PET?



    We need use plastic material separation machine to sort plastic by different material type.



    Plastic optical sorter technical characteristics

    1, high-end infrared sorting technology
    Using an imported infrared camera, penetrate deep into the material and test the internal composition
    2, intelligent module design
    Continuously ensure efficient and stable operation of the equipment
    3. High-speed processing system
    Easy and high output, fast return on investment
    4, small difference recognition
    Improve the purity of finished products and create greater value



    Infrared sorting machine sort the plastic by material type ,to solve problem of plastic with same color

    Plastic optical sorter Specification

    Model ZSI-4 ZSI-5 ZSI-6 ZSI-8
    Channels 256 320 384 512
    Capacity(t/h) 1.0-2.0 1.3-2..3 1.6-2.6 2.2-3.3
    Power(kw) 2.2 2.6 3 4
    Voltage(V) 110-250V/50-60Hz 110-250V/50-60Hz 110-250V/50-60Hz 110-250V/50-60Hz
    Sorting accuracy 99.99% 99.99% 99.99% 99.99%
    Rejection rate(bad:good) ≧10:1 ≧10:1 ≧10:1 ≧10:1
    Dimension(mm) 1965*1630*2050 2225*1290*1710 2595*1630*2050 3350*1630*2050
    Air consumption(L/M) 1000-1800 1300-2200 1500-3000 2000-4000
    Weight(kg) 750 880  1050 1400

    Remark:we have 12 models for optical sorting plastic,here we just list 4 models for reference.





    Process of plastic sorting by different material



    Raw material--Crushing--Washing--Drying--Color Sorting--Infrared optical sorting
