|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Vacumm packing and wooden case|
|Delivery Time:||15 days|
|Payment Terms:||TT, L/C, Western Union, D/A, D/P, Western Union|
|Supply Ability:||5000 sets per year|
|Application:||Sorting Garlic By Color And Shape||Sorting Accuracy:||99.95%|
|CCD Camera:||RGB||CCD Sensor:||Toshiba From Japan|
|Air Filter:||SMC From Japan||Ejector:||Matrix From Italy Or GroTech Customized|
|FPGA:||ALTERA From USA, SAMSUNG Chip From Korea||Light Resource:||LED Light ,digital Control|
|Machine Type:||Belt Color Sorter||Aftersale Service:||Engineers Available To Service Oversea,on Site Commissiong And Training|
Belt Color Sorter Features & Benefits
• Gentle product Handling and acceleration
• Multiple camera confiurations to match product requirements
• Tri-chromatic camera
• LED lighting
• Simple, user-friendly operation,cleaning and maintenance
• Integrated and automated clean-inplace (CIP)
• Easy adjustment for product change over
• Information analytics for integration with process controls
• Wet or dry products
Precise Removal of Defects and Foreign Material
IntelliSort ejection system features 256 ejectors with a 6mm pitch to ensure complete removal of defects and foreign material with minimal collateral damage. Exceptional ejector response time with pinpoint accuracy for unparalleled performance increases yield.
Precise Defect Identifiation
High resolution Tri-chromatic cameras ensure even the subtlest defects are identifid and targeted for removal. Object based image processing with sub-millimeter spatial resolution helps you improve quality.
Top and Bottom cameras view product from all sides to detect size,shape, or color flws. Contour or centered ejection based on product,defects and foreign material.
Gentle Product Handling
Belt color sorter uses gravity and centrifugal force to move product into the inspection zone without damage at consistent speed and volumes.The Belt stabilizes the product into a single uniform layer with even spacing for optimum viewing resulting in improved quality and increased yield.
Color Sorter Machine used to separate the garlic Into it's size, color, quality, shapes, etc. this color sorter machine is multi purpose color sorter machine used to separate the garlic, cashews, peanuts,Vegetables (sliced and diced), fruit (whole,sliced, diced), potatoes (strips, sliced, diced,wedges), candy, coffee beans, nuts, snacks. Dal and many other nuts and foods.
This Is a Belt type color sorter machine sorting results examples
Belt type color sorter machine features
1. High-definition CCD Image Sensor
2048 pixel HD full color CCD is adopted, the definition is up to 0.08mm2, which ensures recognition of subtle color difference and minimal flaws.
2. High-speed data processing, real time display of real image
High-speed parallel data processing chip, real-time high efficiency image capture and processing system of the machine increased working efficiency of color sorter greatly.
3. High Quality Image Processing Algorithm
International advanced image processing technology is applied, which can recognize subtle color difference as small as 0.1mm. Higher color sorting accuracy, lower sorting carryover.
4.Self-adaption Temperature Control
The fan in the machines elf-adapt working temperature to ensure the color sorter keep normal working in high-temperature environment.
5.Advanced High-Pressure valve Ejectors
Outstanding sorting accuracy make sure to sort out good material and bad material perfectly;high definition and well-designed ejectors; high frequency, high frequency,durable,long service-life.
6.Special PC interface display and Operation Platform
User-friendly operation interface ensures convenient operation and processing.
7.High Quality Material Convey System
Food-grade conveying belt with high quality is applied, which ensures the safety of food material, and decreased damage of food product.
8.Special Lighting System
Special light source is equipped to ensure HD image quality, which makes the machine can meet different kinds of sorting requirements and recognize subtle variation of color.
Working flow of belt color sorter machine

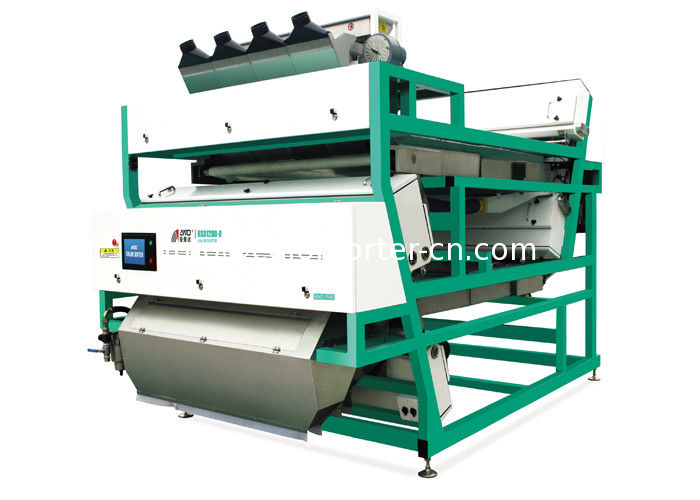

Belty type color sorter
