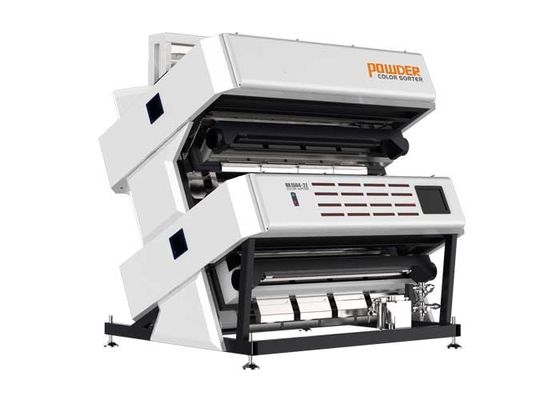

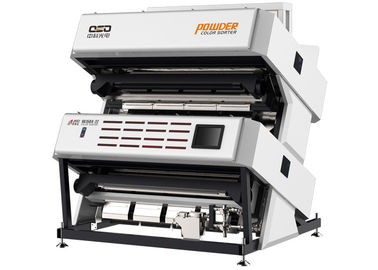

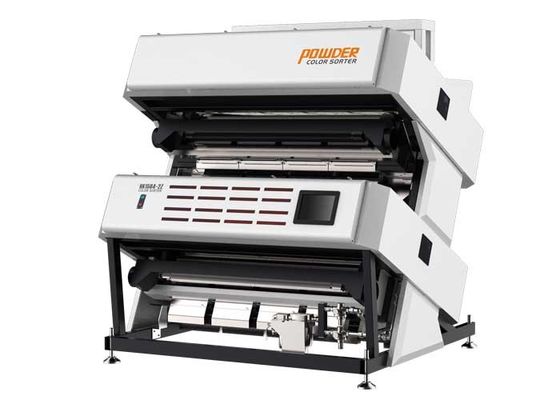

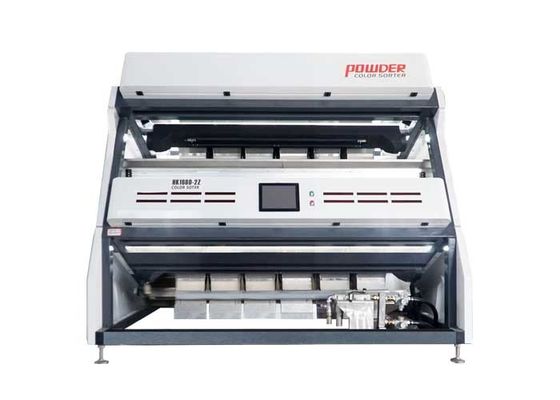

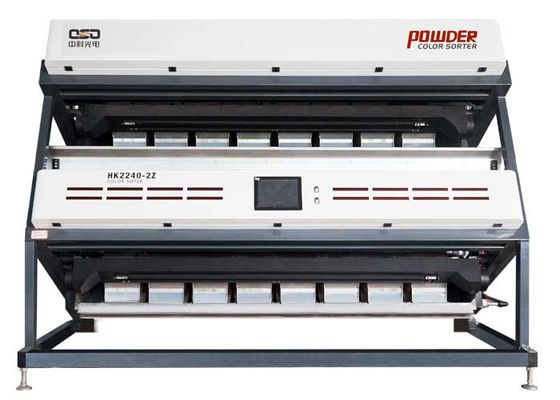

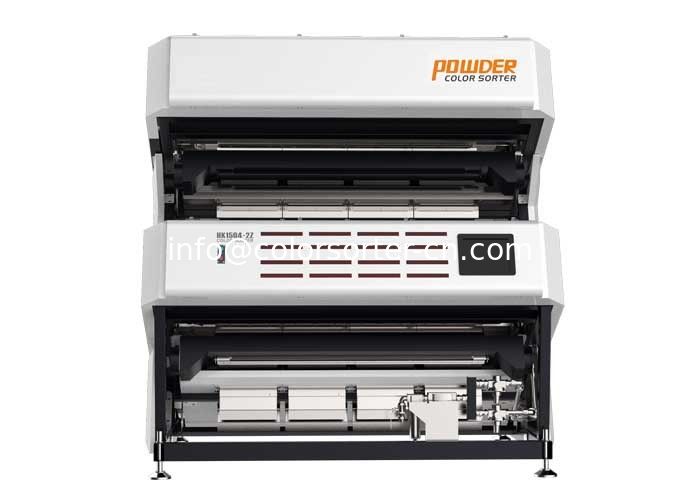

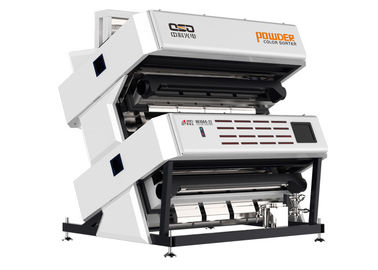

quartz sand(26-120 mesh) optical sorting machine,powder size color sorter machine HK3008-1Z

quartz sand(26-120 mesh) optical sorting machine,powder size color sorter machine HK3008-1Z

quartz sand(26-120 mesh) optical sorting machine,powder size color sorter machine HK3008-1Z

Product Details:

Place of Origin: Hefei,China
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 0-300000USD
Packaging Details: Vacuum packing and Wooden case
Delivery Time: 30 days when receive downpayment
Payment Terms: TT/, D/P, Western Union, L/C, D/A
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Usage: Optical Sorting For Quartz Sand Structure: Special Design For Small Size Mineral
Sorting Accuracy: >99.9999% Pixel: 5400
Cameras: 4 Pcs Of RGB Cameras Per Chute Ejector: 128 Pcs Of Ejectors Per Chute
Chute Type: Special Strong Alloy Material Can Work For Very Long Time Internet: IoT

For the quartz sand 26-120 mesh,there are still some black and yellow sand inside.



How to increase the purity ?



We have special ore sorting equipment for powder size mineral,which is the most precise for powder.





Features:



1, Vertical chute solves the problem of powder and track sticking during powder ore sorting



2, Suitable for the ore particle range from 26mesh to 120mesh



3, The slides are made of high-density alloy and are resistant to wear and scratches.



4,Each chute has 4 RGB cameras,128 ejectors which is the highest configuration in the industry.So the machine could see more precise and and reject more precise



5,Two kinds of structure(Single-decker and double-decker) and six models for option.



quartz sand(26-120 mesh) optical sorting machine,powder size color sorter machine HK3008-1Zore color sorter machine





































Specification

Model HK3008-1Z HK1504-2Z
Output(t/h) 26-40 mesh 5.0-10.0 26-40 mesh 3.0-5.0
40-70 mesh 4.0-8.0 40-70 mesh 2.0-4.0
70-120 mesh 2.0-4.0 70-120 mesh 1.0-2.0
Carryover rate >1:30 >1:30
Accuracy >99% >99%
Voltage 180-240V/50-60HZ 180-240V/50-60HZ
Power(kw) 6.5 5
Air pressure(Mpa) 0.2-0.6 0.2-0.6
Air consumption(L/min) 1800 2800
Weight(kg) 2600 2400
Dimensions(mm) 3995*1920*1770 2336*2233*2511



Installation cases of optical sorting solution for quartz sand

quartz sand(26-120 mesh) optical sorting machine,powder size color sorter machine HK3008-1Z

mineral sorter machine

quartz sand(26-120 mesh) optical sorting machine,powder size color sorter machine HK3008-1Z





We have many installation cases and working videos.Please contact us freely,if you need.





Mineral optical sorting solution.pdf
