    Product Details:

    Place of Origin: China
    Certification: CE,3C,ISO9001,IS014001
    Model Number: FX4805-BS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 15000-150000USD
    Packaging Details: Vacuum packing and Wooden case
    Delivery Time: 10 days
    Payment Terms: TT, D/A, D/P, Western Union
    Supply Ability: 5000 per year
    Contact Now
    Detailed Product Description
    Application: Xray Optical Sorting Sorting Accuracy: 99.99%
    Filter: SMC From Japan FPGA: ALTERA Processor From USA, SAMSUNG Chip From Korea
    After-sales Service: Engineers Available To Service Oversea Warranty: One Year

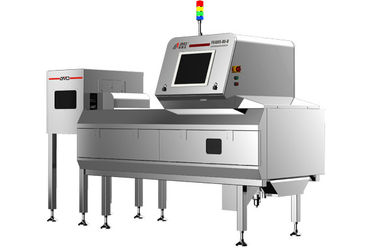

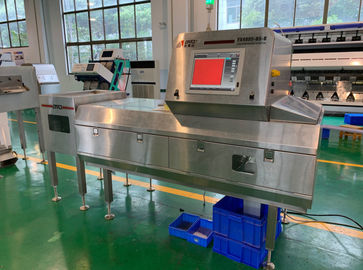

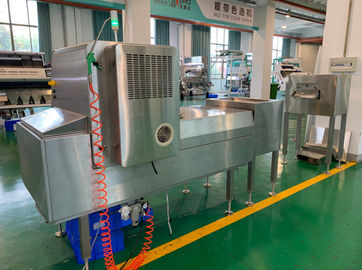

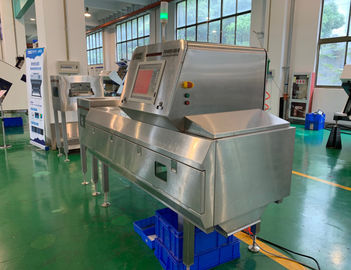

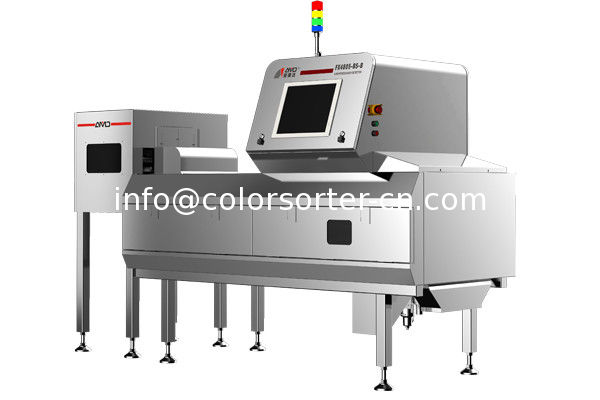

    X-ray sorting machine for foreign object is a new generation machine developed by the company based on the latest X-ray imaging and image processing technology. It is fully compatible with European standards and is suitable for bulk materials such as kernels, nuts, cereals, beans, grain, dehydrated vegetables. The detection can identify and eliminate the malignant impurities such as glass, metal, stone and calcified bone mixed in the product, and further protect the product quality of the food enterprise.



     BULK SORTING MACHINE: OVERVIEW

    • X-ray detection with an unmatched resolution
    • Low false reject with precise air ejectors
    • Ease of use with intuitive graphical user interface (GUI)
    • High capacity food sorting machine for high volume processing



    FOOD SORTING APPLICATIONS

    Almonds
    Cashews
    Hazelnuts
    Pistachios
    Peanuts
    Raisins
    Walnuts
    Coffee
    Fresh & frozen cherries
    Mussel meat (frozen & fresh)
    Scallops
    Olives

    By implementing the latest x-ray and imaging software technology, metal, stones, pits, glass, high density plastics, etc. from food is removed.

    The Bulk x-ray sorting machine provides the safest food sorting solution for customers’ brand protection.

    Xray sorting machine Specification

    Model FX4805-BS
    Dimension 2254*1140*2193mm
    X-ray output 210W,(MAX) 80KV/5.0MA
    belt speed 10-90m/min,adjustable
    belt width 460mm
    Power <2KW
    Voltage Single phase AC 200~240V(50/60HZ)
    Interface 17 inch LCD touch screen
    X-ray leakage <0.5Υsv/h
    Protection level Transmission part IP66, other IP53
    Use environment Ambient temperature 0~40°C, relative humidity 30~85%, but no condensation (no freezing, drastic change)
    Optimum detection accuracy Stainless steel ball φ0.3mm, stainless steel wire φ0.2*2mm
    Body material stainless steel 304(SUS304)
    Radiation license number A0379



    Xray sorting example

    x-ray sorting machine,X-ray foreign material detector
