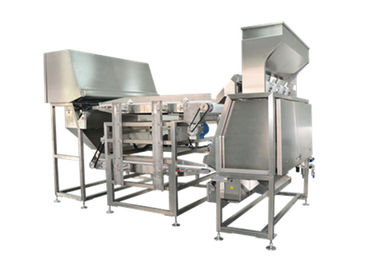

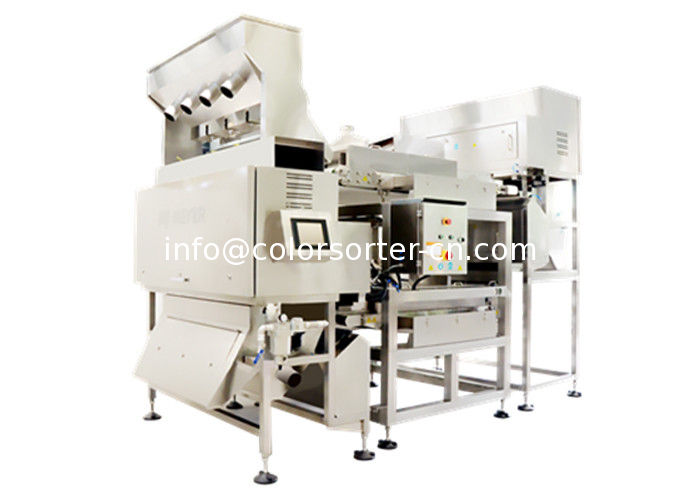

CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.

CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.

    • CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.
    • CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.
    • CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.
  • CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.

    Product Details:

    Place of Origin: China
    Certification: CE,3C,ISO9001,IS014001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 15000-100000USD
    Packaging Details: Vacumm packing and wooden case
    Delivery Time: 10 days
    Payment Terms: TT, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability: 5000 sets per year
    Contact Now
    Detailed Product Description
    Application: Sorting Cashew Nuts By Color And Shape Sorting Accuracy: 99.5%
    CCD Camera: RGB,5400 Pixels CCD Sensor: Toshiba From Japan
    Air Filter: SMC From Japan FPGA: ALTERA From USA, SAMSUNG Chip From Korea
    Light Resource: LED Light ,digital Control Machine Type: Belt Color Sorter
    Aftersale Service: Engineers Available To Service Oversea,on Site Commissiong And Training

    CCD Color Sorter for cashew nuts

    Full color Trichromatic sorting-Optical sorter

    1,1 to 16 chutes and belt color sorter series.

    To meet and satisfy any production capacities.

    2,Ultimate full color RGB camera

    Front and rear optical system, composed by 4096 pixel RGB full color cameras, allows to identify any defect at 360°perspective

    with a resolution of 0.1mm.

    Defect size can also be controlled and adjusted according to needs.

    3,Shape size sorting integrated into the system

    size ,shape ,color sorting

    Size: Under and over sized objects for greater value

    Shape: Misshapen product and foreign material of the same color

    Color: Color defects by individual or combined defect area

    4,LED-lightning system

    Exclusively designed , LED lighting system allows the most precise focusing of the beam on the inspection line.

    5,User friendly setting with image acquisition
    Program setting and adjustment are performed through a user–friendly software which allows the acquisition of the product image to easily establish the defective elements to sort out.

    CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.

    6,Reliable electronics hardware

    The hardware is organized in easily replaceable electronic boards,

    using the ultimate FPGA technology;

    Self-control functions, such as auto-diagnosis and auto-calibration are standard on any sorters;

    Back-up of the operating software by USB on board.

    The high speed signal elaboration and communication to expulsion system allows an excellent performance.

    ALTERA company's high-speed FPGA processing from USA

    SAMSUNG chip from South Korea

    TOSHIBA camera sensor from Japan

    SMC air filter from Japan

    Schneider air switch and button switch from France

    Mean Well power supply from Taiwan

    MATRIX ejector from Italy(optical)

    CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.





    Benefits of Zhongke Cashew nuts Color Sorter

    1,Helps processors meet stringent safety standards

    2,Maximises product value and yield

    3,Delivers consistent performance and stability

    4,Increases productivity and lower operational costs

    Description of Cashew Nuts Optical Sorting Machine

    Zhongke belt type Cashew Nuts Sorting Machine delivering maximum quality and meeting stringent food safety requirements.Zhongke optical sorting technology sorter cashew nuts from a variety of different grades and stages:whole,split,chopped or diced,raw or roasted.The belt type Cashew Nuts Sorting Machine series can efficiently remove typical defects such as testa,cahews with subtle discolorations or dark spots,sticks,stones and shell as well as challenging defects such as rotten pieces in diced or chopped cashews.

    It can well remove black colored,black spotted,yewllowish cashew,and foreign material etc. from its raw material and creat added value for you.



    Specification

    capacity(t/h) 0.5-1.0 1.0-3.0 1.0-3.0
    Structure belt width 600mm
    single belt
    belt width 1200mm
    single belt
    belt width 1200mm
    double belt
    Cameras CCD camera
    5400 pixel
    CCD camera
    5400 pixel
    CCD camera
    5400 pixel
    Light LED light source LED light source LED light source
    Power(kw) 2 3 4.5
    Voltage(V) 110-250V/50-60Hz 110-250V/50-60Hz 110-250V/50-60Hz
    Sorting accuracy 99.99% 99.99% 99.99%
    Rejection rate(bad:good) ≧10:1 ≧10:1 ≧10:1
    Dimension(mm) 3565*1200*2110 3500*1800*2110 3565*1800*2900
    Air pressure(Mpa) 0.6~0.8 0.6~0.8 0.6~0.8
    Weight(kg) 600 800 1200
    Warranty one year one year one year
    Aftersales service 1. we can send engineer to the buyer for installation, debug, and training to local technicians for the use, maintenance and repair of the machines, but the buyer should afford the round trip air tickes, and local foods, hotel, transportation etc;
    2. warranty period is one year;
    3. during warranty period if there's problem caused by parts damage, we can send the parts free to replace, if machines cannot be fixed by local technician, we'll send engineer and afford the related costs;
    4.when deliver the machine, we can give some free parts to cover possible damage use based on the quantity of order. And we will give one list of suggested parts to be bought by the buyer.
    5.if long time cooperationship can be estabilished, like partner or agents, after agreement is signed and 5 units of machines are sold, the buyer can send engineer to our company to receive training for 10-15days, and we'll afford the foods, hotel and transport of our engineer in Hefei.



    Optical Sorting samples

    CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.

    CCD Color Sorter for cashew nuts ,belt color sorting machine sort by color and shape.
