Place of Origin: | Hefei,China |
Certification: | CE,3C,ISO9001,IS014001 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 15,000-100,000USD |
Packaging Details: | Wooden case and vacuum packing,20GP |
Delivery Time: | 10 days after deposit or L/C |
Payment Terms: | TT, T/T, Western Union, MoneyGram, D/P, D/A, L/C |
Supply Ability: | 5000 |
CCD Sensor: | Toshiba From Japan | Air Filter: | SMC From Japan |
---|---|---|---|
FPGA: | ALTERA Processor From USA | Light Source: | LED Digital Control |
Function: | Sorting Grain By Color And Shape |
Zhongke is a leading global supplier of Color Sorting solutions to the food and non-food processing industries .Thanks to Zhongkes advanced sorter machine,now Zhongke wins widespread high praise from our users.
Zhongke offers complete solutions for processors who demand the highest standard of product quality. The M ,ZL,LD range is specifically engineered for grain sorting and delivers improved food safety.
The commitment to large investment in R&D ensures that this advanced optical sorting technology produces excellent results in rejecting even the most challenging of defects and foreign material.

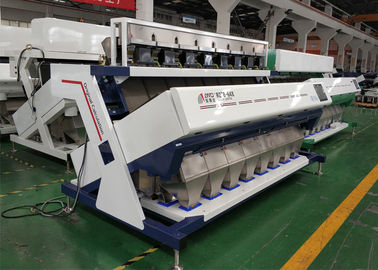

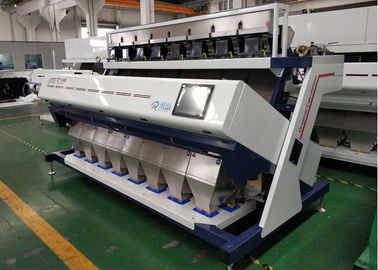

ZL series color sorter
Model | ZL-10 | ZL-8 | ZL-6 |
Channels | 640 | 512 | 384 |
Chute | 10 | 8 | 6 |
Throughput(T/H) | 8-26 | 6-20 | 4-16 |
Sorting Accuracy (%) | > 99.97 | >99.97 | >99.97 |
Optimized carryover(bad: good) | > 8:1 | >8:1 | >8:1 |
Channels preset for primary sorting and re-sorting | 448:192 | 384:128 | 256:128 |
Voltage (V) | ~220(50Hz) | ~220(50Hz) | ~220(50Hz) |
Power of the main machine (KW) | 3.2 | 3.0 | 2.2 |
Air Pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
Air Consumption (m³/min) | < 3.6 | <3.0 | <2.5 |
Weight (Kg) | 1100 | 900 | 850 |
Dimension (L x W x H)(mm) | 2595×1450×2127 | 2043×1410×2040 | 1920×1410×2040 |
Remark:We have many different models from 1 chute to 16 chutes to meet any different production capacity.ZL-10,ZL-12,ZL14,ZL16 are V structure type.
Color sorting solutions for cereals
The Zhongke color sorters is suitable for small, medium or large-scale processing and is able to meet for a wide variety of grain applications. The applications showcased below are just a small selection of optical sorting solutions that Zhongke offer.
Wheat
The ZL range can remove diseased grains such as Vomitoxin (DON), Fusarium and Ergot, discolored, damaged or bug infested grains and can reduce cross contamination from Barley, Oats, Soya and a range of other grains and foreign materials.
Durum
The ZL series can remove small spot and tip defects, diseased grains and has a dedicated Fusarium removal setup.
For Protein Durum wheat sorting, low protein grains can be removed.
Barley
Highly efficient in removing mycotoxin contaminated kernels, minimizing the risk of gushing in beer.
Optimized optical system allows removal of naked and cracked kernels as well as cross contamination by wheat, rye and oats.
Rye
Delivers the highest level of food safety with consistent removal of Ergot and damaged grains.
Foreign grains such as barley, wheat and wild oats can also, all be removed with high efficiency.
Advantage of CCD Color Sorter Machine
Improving food safety and delivering the highest quality grain
Optical sorting solution improves food safety by removing diseased grains contaminated with toxins such as mycotoxins (e.g. vomitoxin (DON or alkaloids e.g. ergot)
Excellent results in removing foreign seeds and grains from product (e.g. vetch, weed seed and others)
optical sorters help achieve excellent intermediate product appearance, for products such as whole grain, grits and flakes.
Maximizing yield
The high precision ejection system minimizes false reject of good grain, delivering a highly concentrated reject stream
Due to minimal loss of good grains on the first pass, most grain applications do not require a re-sort while still running on a high capacity, however, a re-sort option is available if required.
Delivering high capacity solution
Optical sorters can be individually configured to cater for capacities of between 500kg and up to 20 tonnes per hour (e.g. on wheat)
Production volume is maintained, with minimum downtime for cleaning or product configuration change.
Consistent performance and lower operation costs
Optical sorters deliver stable and reliable operation with product-tracking, auto-calibration and wiping of the viewing area, meaning machines are self-optimizing and perform consistently in the long-term
