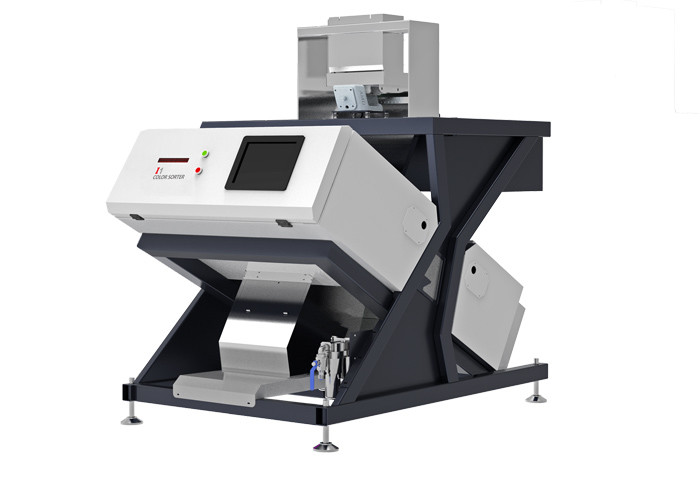

Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras

Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras

    • Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras
    • Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras
    • Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras
  • Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras

    Product Details:

    Place of Origin: Hefei ,China
    Certification: CE,CSA,3C,ISO9001,IS014001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wooden case and vacuum packing
    Delivery Time: 20 days
    Payment Terms: TT, L/C, D/A, D/P, Western Union
    Supply Ability: 5000 sets per year
    Contact Now
    Detailed Product Description
    Function: Sorting The Material By Color And Material Type.

    How to separate the shell from the kernel if they don't have color difference?

    Zhongke Infrared sorter series could offer the perfect solution.RGB with InGaAs technology - shell and foreign material removal
    Enhanced InGaAs technology can detect defects which cannot be seen in the visible spectrum providing much better separation of good product from foreign material of the same colour. Product modes can be pre-defined for effective shell removal from all types of nuts.



    Infrared Optical Sorter Specification

    Model I1 I3 I5 I7
    Product Output)(t/h) 0.5~1.5 1.5~3 2.5~4.5 3.5~7.0
    Sorting Accuarcy(%) ≥99 ≥99 ≥99 ≥99
    Carryover Rate) (Bad:Good) ≥6:1 ≥6:1 ≥6:1 ≥6:1
    Weight(kg) 515 687 737 870
    Power(kW) 1.0 1.4 1.8 2.2
    DimensionL×W×H(mm×mm×mm) 1064×1707×1827 1554×1707×1827 2184×1707×1827 2814×1707×1827
    (Power Supply)(V/Hz) 220/50(110/60) 220/50(110/60) 220/50(110/60) 220/50(110/60)





    Infrared optical sorter machineWalnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras

    InGaAs technology enhancing to-detect foreign materials

    InGaAs technology enhances visibility of defects so the high-definition cameras can detect them. Visibility is enhanced even for those defects that are the same color as good products, such as sclerotia in sunflower seed.

    Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras





    Zhongke provides sophisticated color sorting solutions for nut processsors with stringent safety and quality requirement.

    Our advanced optical sorting technology delivers superior performance in removing the chanllenging defects and foreign material from many types of nuts and dried fruit including peanuts,almonds,pistachios,walnuts,pecans,cashews,pinenuts,hazelnuts,macadamia,brazil nuts and raisins.

    Our intelligent software that analyzes the pre-defined size, shape, and color of your product. It then removes unwanted product that does not meet these parameters. Typical applications include removing undersized, oversized, and broken particles.

    Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras





    Infrared Optical Sorting Machine for Almond

    Our color sorter series are suitable for different varieties and grades of pecans:in-shell and shelled,including sizes ranging from halves to pieces and colours ranging from light to dark amber.Our advanced sorting machine can remove discoloured,insect-damaged,mouldy or immature kernels as well as foreign material including sticks and shell.

    Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras

    Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras





    Optical Sorting Machine for walnut

      Walnuts Sorting Machine.Infrared Optical Sorter Machine.RGB with infrared cameras





    We have demonstration videos.If you need watch the video ,please contact us freely.Welcome to send your sample for test.
