|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden case and vacuum packing|
|Delivery Time:||15 days|
|Payment Terms:||TT, L/C, D/A, D/P|
|Application:||Sorting Rice||Sorting Accuracy:||99.99%|
|Rejection Rate(bad:good):||》=15:1||Filter:||SMC From Japan|
|CCD Sensor:||Toshiba From Japan||FPGA:||Processor From USA, SAMSUNG Chip From Korea|

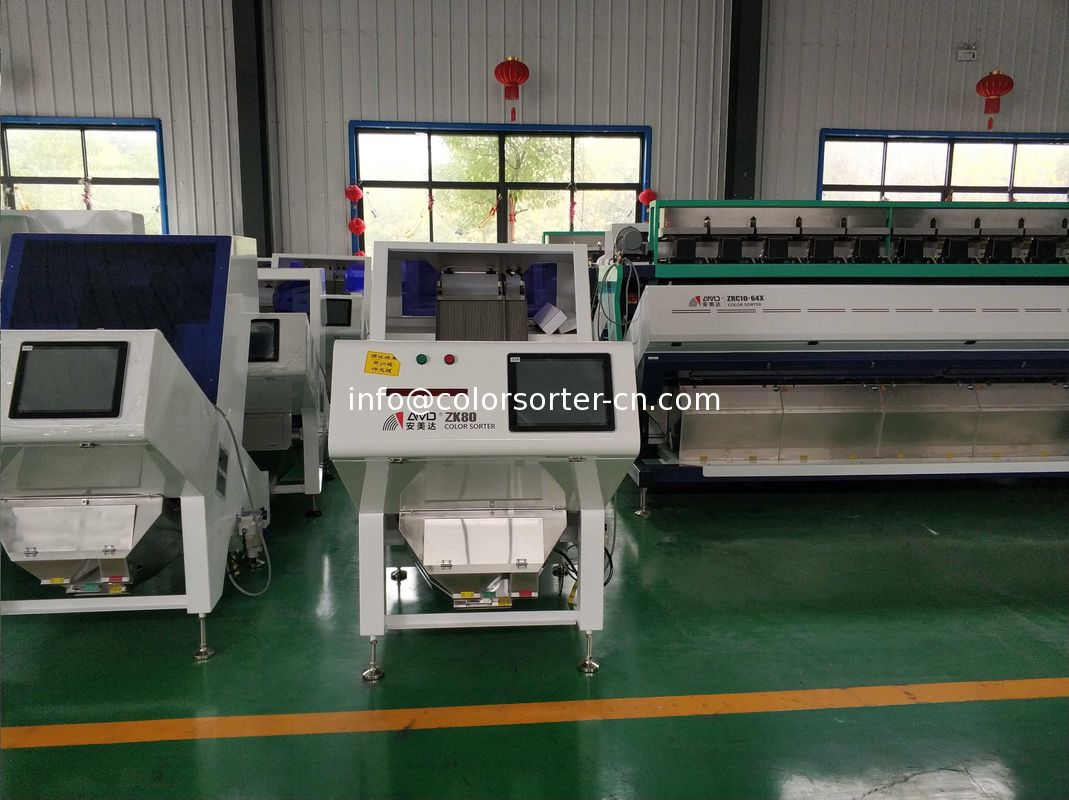

rice colour sorter machine is ideal for rice processors who sort different varieties of rice and at different processing stages.The sorting range is suitable for processors who demand the highest in rice quality,offering precision sorting to maximise yields and increase profits.
Raw rice sorting:
It can effectively removes both typical and challenging defects and foreign material;discolouredgrains,chalky grains,bran streaks,sticks,stones and unwanted foreign seeds,leaving the finished sort ,clean,and safe.
White rice sorting:
we can sort out red,yellow,and green grains,chalky rice,discolored and immature rice,blackspotted grains with spot less than 0.25mm.
Parboiled rice sorting
We can sort out black and burned grains,discolored ,black spotted.And any others defective grains.
Some advantages of Color Sorter
1,Near human eye vision color sorting technology, using 16 million colors, brings the best sorting performances
2, Full-color cameras optical system, with dimensional control of the defects, allows 0.1mm optical resolution
3,image acquisition allows the easy and accurate setting of the defects to remove. Software adjustment is completely automatic thanks to HSV technology
4,Shape-sizing integrated into the system
5,Most concentrated rejects, thanks to customized hi-tech ejectors
6,Highest production capacities, automatically regulated by a feeder control device
7,Possibility to have simultaneous product resort, even with reverse sorting and third sorting.
8,Possibility to add sloping chutes for sorter upgrading or production increase
9,Possibility to install additional cameras operating in NIR after machine installation at working premises
10,Led lighting system which is digital control
11,Automatic cleaning system, with adjustable frequency and duration
12,Tilting optical boxes, to allow an easy internal access for maintenance operations
13,Airtight optical boxes with controlled temperature
14,Designed mechanics grants the highest hygiene and prevents product outflow or accumulation
15,Provision with de-dusting suction systems
16,14-inches display with full-color and multilingual touch-screen
17,Flexible and user-friendly
18,Reduced electric and compressed air consumption.
20,Use best quality components to ensure excellent quality.
21,From one chute to sixteen chutes to meet any different production capacity requirement
Rice color sorting samples
Using high signal-to-noise ratio sensor and anti-interference circuit system,which could highly improve stability and reliability.Our parts is famous brand in the world.
ALTRA company's high-speed FPGA processing from USA
SAMSUNG chip from South Korea
TOSHIBA camera sensor from Japan
SMC air filter from Japan
Schneider air switch and button switch from France
Mean Well power supply from Taiwan
MATRIX ejector from Italy(optical)
2,Advanced image acquisition system
Full color 2048 CCD Cameras and lens-Recognize accurately all minimum defects in the material.
3,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty
color sorting problems,and dramatically enhance the sorting accuracy.
4,Unique chutes processing technology
Application of domestic high-quality 300mm ultra-wide material chute.
Special anodizing process can ensure production capacity and make the products comply with international standards.
It can be equipped with cascade flat and narrow chute channel to meet more color sorting requirements
5,High efficiency and reliable light source
High reliability and long life span LED light resource, with bulb from Taiwan and controlling chip from USA.The lightness could be adjustable according to different material
6,High quality solenoid valve(ejector)
Equipped with high quality solenoid valve.The valve has longer lifespan ,high frequency ,and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.
For the different sizes and characteristics of material particle, optical sorters use the solenoid valve of different sizes.
7,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
