|Place of Origin:||Hefei,China|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden case and vacuum packing|
|Delivery Time:||25 days after deposit or L/C|
|Payment Terms:||TT, T/T, D/P, D/A, L/C|
|Applicable:||Sorting Rice||Excellent Sorting Accuracy:||99.99%|
|FPGA:||ALTERA From USA, SAMSUNG Chip From Korea||CCD Sensor:||Toshiba From Japan|
|Air Filter:||SMC From Japan||Warranty:||One Year And Free Updating For Software|
300mm wide chutes provide high processing capacity.
Two chutes types are available:flat and grooved.Optional mounting parts are also available to optimize chute material flow.
2, Higher yield
Primary-sorting model:sorts raw material once only
Secondary-sorting model:sorts raw material once,then re-sorts the rejects after primary sorting.
Tertiary-sorting model:sorts raw material once,then re-sorts the rejects twice.
A new ejection arrangement separates 2 grades of rejects: absolute and intermediate.Absolute defects will be removed by the primary sort and only intermediate defect go to secondary sort.This reduces resort quantity and and increase good product recovery.
3,easier to operate
The new users interface design has individual sensitivity adjustments for specific defect.This simple sorting control make it easy for operator to achieve the maximum sorting performance with minimum training.

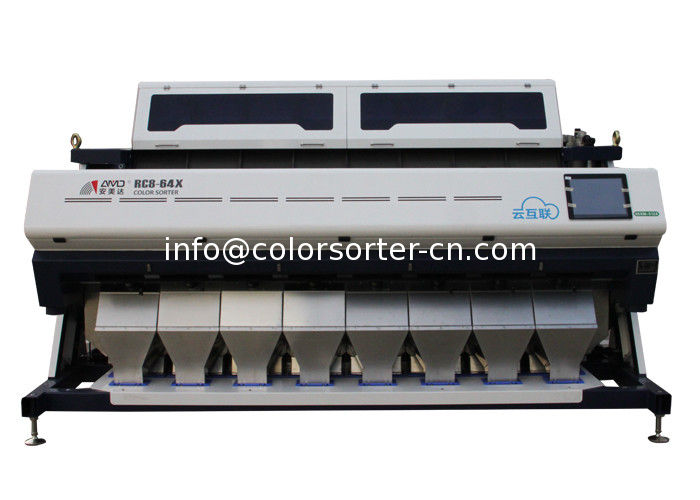

Optical sorter with full color camera
This large-capacity optical sorter features advanced full-color sorting technology with trichromatic image analysis and is ideally suited to sort grains and beans in a plant environment.
This machine is equipped with the latest sorting systems.A full-color camera recognizes subtle differences in color ,contributing to food security and improving your grain’s appearance.
Reliable electronics hardware
The hardware is organized in easily replaceable electronic boards,
using the ultimate FPGA technology;
Self-control functions, such as auto-diagnosis and auto-calibration are standard on any sorters;
Back-up of the operating software by USB on board.
The high speed signal elaboration and communication to expulsion system allows an excellent performance.
ALTERA company's high-speed FPGA processing from USA
SAMSUNG chip from South Korea
TOSHIBA camera sensor from Japan
SMC air filter from Japan
Schneider air switch and button switch from France
Mean Well power supply from Taiwan
MATRIX ejector from Italy(optical)
Rice Color Sorter Machine specification
|Notes||Subject to different impurities of raw materials,parameters listed in above will change to some extent|
Remark:We have many models from 1 chute to 16 chutes for option to meet any different production capacity.M10,M12,M14,M16 is V type has back to back structure.
Flow of color sorter machine operation can be described as follows:
Raw product is loaded in the sorter through in-feed hopper.With the help of vibration the material flows along the chute to the distribution channels.Then the product gets into the inspection zone,where it is checked by the high-tech sensors or CCD-cameras.Cameras ,having received the reflected light from the selected material,generate electric signal for computer operating system.
Depending on the signals received from the optical system,the computer control system sends the command to open the pneumatic valve(the ejector)which blows away grains different in color.The good product directly flows into the goods product hopper.The reject is blown off to the discharging hopper.
Most of the sorters have the re-pass option ensuring more accurate sorting of the grain and minimizing losses of the good product.
What we can get after sorting
