| Place of Origin: | Hefei,China |
| Certification: | CE,3C,ISO9001,IS014001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 20,000-100,000USD |
| Packaging Details: | Wooden case and vacuum packing,20GP |
| Delivery Time: | 10 days after deposit or L/C |
| Payment Terms: | TT, T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 5000 sets per year |
| CCD Sensor: | Toshiba From Japan | Air Filter: | SMC From Japan |
|---|---|---|---|
| FPGA: | ALTERA Processor From USA | Light Source: | LED Digital Control |
| Function: | Sorting Corn By Color And Shape | Aftersale Service: | Engineer Avaialbe To Service Abroad And Offer On-site Training |
| Warranty: | One Year |

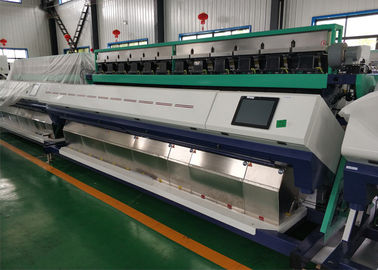

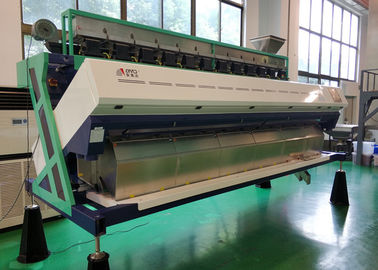

Corn Color Sorter
Improving food safety and delivering the highest quality grain
Equipped with the latest in technological advances, the Zhongke optical sorters range is able to effectively remove both typical and challenging defects such as black tips, spots, discolouration, rotten pieces, dark,diseased kernel,split seeds, unwanted foreign grains, sticks and stones.
Zhongke color sorter is ideal for corn/maize processors who demand the highest standards in producing a safe and quality product, consistently. The range is available for both small and large–scale processing of field corn and corn grits and offer precision sorting to maximised yields and profits.
Color sorter ZL series
| Model | ZL-10 | ZL-8 | ZL-6 |
| Channels | 640 | 512 | 384 |
| Chute | 10 | 8 | 6 |
| Throughput(T/H) | 8-26 | 6-20 | 4-16 |
| Sorting Accuracy (%) | > 99.97 | >99.97 | >99.97 |
| Optimized carryover(bad: good) | > 8:1 | >8:1 | >8:1 |
| Channels preset for primary sorting and re-sorting | 448:192 | 384:128 | 256:128 |
| Voltage (V) | ~220(50Hz) | ~220(50Hz) | ~220(50Hz) |
| Power of the main machine (KW) | 3.2 | 3.0 | 2.2 |
| Air Pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Air Consumption (m³/min) | < 3.6 | <3.0 | <2.5 |
| Weight (Kg) | 1100 | 900 | 850 |
| Dimension (L x W x H)(mm) | 2595×1450×2127 | 2043×1410×2040 | 1920×1410×2040 |
Remark:We have many different models from 1 chute to 16 chutes to meet any different production capacity.ZL-10,ZL-12,ZL14,ZL16 are back to back structure type.
Our optical sorters are equipped with the latest technology that has been designed to optimize grain sorting. Along with a market leading and long standing reputation and excellent after sales service packages, Zhongke will prove to be a great partner.
Color sorting solutions for cereals
The Zhongke color sorters is suitable for small, medium or large-scale processing and is able to meet for a wide variety of grain applications. The applications showcased below are just a small selection of optical sorting solutions that Zhongke offer.
Corn/maize sorting
From field corn to grits, the ZL range can offer precision sorting on even the most challenging defects.
Black tips, broken or split grains, foreign materials and dangerous aflatoxins can all be removed.
Benefits of Zhongke Color Sorter Machine
Improving food safety and delivering the highest quality grain
Zhongke optical sorting solution improves food safety by removing diseased grains contaminated with toxins such as mycotoxins (e.g. vomitoxin (DON or alkaloids e.g. ergot)
Excellent results in removing foreign seeds and grains from product (e.g. vetch, weed seed and others)
optical sorters help achieve excellent intermediate product appearance, for products such as whole grain, grits and flakes
Maximizing yield
The high precision ejection system minimizes false reject of good grain, delivering a highly concentrated reject stream
Due to minimal loss of good grains on the first pass, most grain applications do not require a re-sort while still running on a high capacity, however, a re-sort option is available if required
Delivering high capacity solution
Our optical sorters can be individually configured to cater for capacities of between 500kg and up to 20 tonnes per hour (e.g. on wheat)
Production volume is maintained, with minimum downtime for cleaning or product configuration change
Consistent performance and lower operation costs
Our optical sorters deliver stable and reliable operation with product-tracking, auto-calibration and wiping of the viewing area, meaning machines are self-optimizing and perform consistently in the long-term
