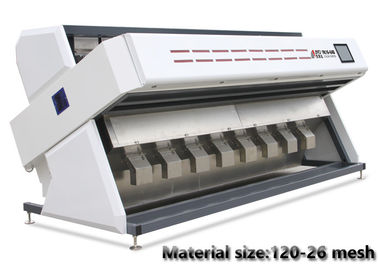

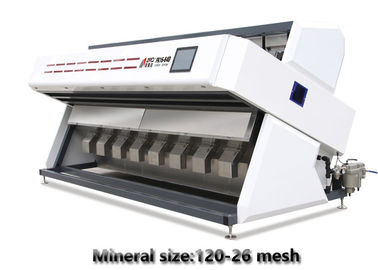

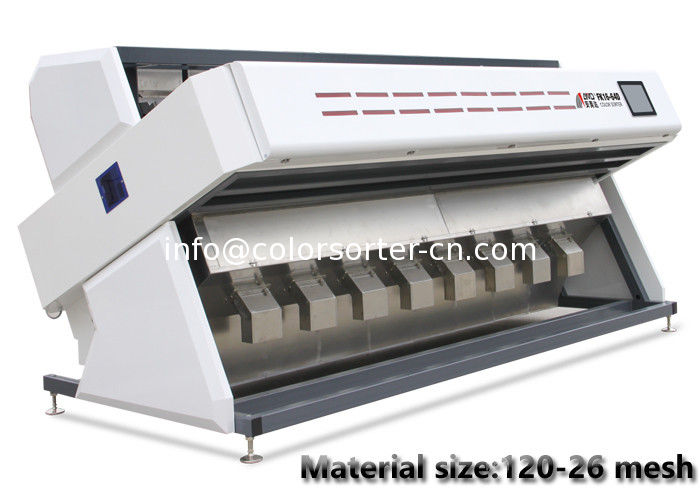

mineral color sorting machine

mineral color sorting machine

    • mineral color sorting machine
    • mineral color sorting machine
    • mineral color sorting machine
    • mineral color sorting machine
  • mineral color sorting machine

    Product Details:

    Place of Origin: Hefei,China
    Certification: CE
    Model Number: KS-1280

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 0-300000USD
    Packaging Details: Vacuum packing and Wooden case
    Delivery Time: 30 days when receive downpayment
    Payment Terms: TT/, D/P, Western Union
    Supply Ability: 5000
    Contact Now
    Detailed Product Description
    Sorting Application: Mineral Structure: Special Design For Mineral
    Sorting Accuracy: 99%

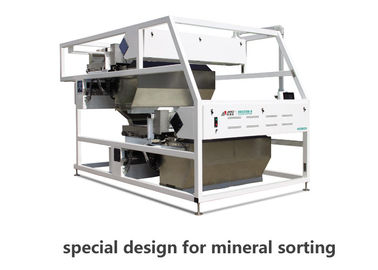

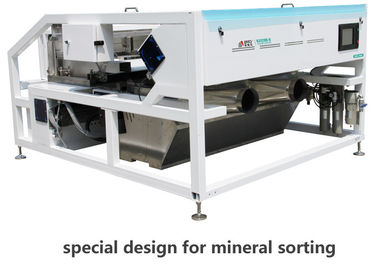

    The machine is special designed for sorting mineral.


    1,The ejector
    The use of special electromagnetic valve for ore, high frequency, accurate color selection, high efficiency and energy saving, intelligent selection of different sizes of ore particles.


    2,Customized structure for different mineral

    We offer solutions for different type mineral.There are single layer,double layer,single vision and double vision for options.


    3,Special long focal design


    We use long focal camera,so the camera is far from the falling mineral which could prevent the mineral broken the glass and dust get on the glass.This special design could increase the productivity and machine stability


    4,Advanced image acquisition and processing system

    Using full color camera image acquistion system with 5400pixels.SOC+FPGA processing system ,providing algorithm of color+shape sorting.


    5,Automatic dust cleaning system


    Add automatic dust removal device and automatic spray cleaning system.


    mineral sorting


    Application scope:
    Non-metallic minerals: potassium feldspar, quartz stone, talc, phosphate rock, calcite, dolomite, andalusite, fluorite, vermiculite, mica, bentonite, kaolin, barite, feldspar, quartz, calcium carbonate, pebbles, Cryolite, garnet, limestone, manganese ore, etc.
    Black ore: single crystal silicon, polysilicon
    Non-ferrous ores: copper, antimony, mercury, lead, zinc, tin, nickel, magnesium, cobalt, aluminum, antimony, silica.
    Precious metals: gold, silver, zirconium, tungsten, molybdenum, niobium.


    Product number BS1280-D
    Used Number 6SXZ-256D
    sturcture Monolayer
    Yield (T / h) 1-3cm 6-10tons
    3-5cm 8-13tons
    Carryover (bad: good) ≥30:1
    Choose the net rate (%) ≥99%
    Power supply voltage (v / Hz) 220V/50HZ
    Power (Kw) 1.6-2.5
    Air pressure (Mpa) 0.6-0.8
    Air consumption (L / min) 2400
    Weight (Kg) 1400
    Dimensions (mm) 3125*2222*2071

    Note: The above parameters are hetero-election 10% quartz sand, for example, the yield will vary depending on the raw material impurity rate.


    Mogensen sorter


    Our mineral color sorter is very popular and are widely used in mineral processor plant.

    mogensen color sorter

    mineral separator

    ore sorter
