| Place of Origin: | China |
| Certification: | CSA,CE,ISO9001,IS014001,ISO18001 |
| Model Number: | M80 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 15000-90000USD |
| Packaging Details: | Vacuum packing and Wooden case |
| Delivery Time: | 10 days |
| Payment Terms: | TT, MoneyGram, Western Union, Western Union, T/T, D/P, D/A |
| Supply Ability: | 5000 sets per year |
| Sorting Accuracy: | 99.99% | Structure: | Compact |
|---|---|---|---|
| Advantage: | High Cost&effective Color Sorter | Advantage 2: | Quick Return Of Investment |
Small machine ,big usage

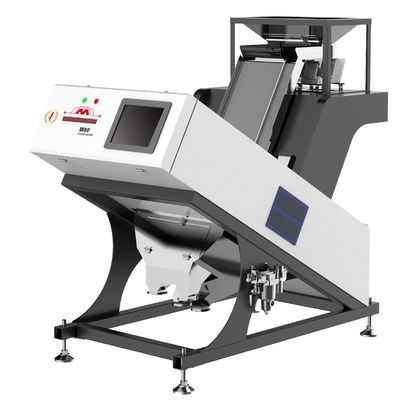

Model name :M80,size :1 chute,80 channels.
The mini color sorter machine is suitable for sorting vegetable seeds,coffee beans,beans,sesame seeds,rice,cerals,and corn seed.The machine could reject subtle color difference,discoloured product,foreign material,spot defects.
Applications:small and medium sized applications ,product R&D,Laboratory use.
The mini color sorter machine is an automatic,cost effective,full color RGB,portable optical sorting machine for small and medium commercial applications,pre-production lots and laboratory use.
Featuring two high resolution cameras,small ejector pitch,uniform lighting and sorting capacity from 50 kg up to 1 ton/hour ,this compact color sorter is able to offer high quality sort equal to its larger counterparts.
Additionally,the small color sorter machine is offering an added benefit of minimal operator training by utilizing an intuitive full color user interface touch screen and the ability to automatically set sorting parameters.
Stong sorting features
Red, green, blue+ shape 4D data integrating technology, intelligent study, intelligent recognition, intelligent classification, intelligent positioning.
Automatic sensitivity system
Multilingual touch screen and user friendly interface and image capture technology
Uses full color camera technology to precisely sort a wide range of products
High speed,digital signal processing technology
Product Advantages
Automatic sorting parameter function
Cost effective color sorter
No changeover parts between products
Easy access for maintenance and cleaning
Minimum operator training required
Reverse sort option
Full color for subtle color difference
Quick return of investment
Portable
very small footprint
Suitable sorting range:vegetable seeds,coffee,soya,sesame seeds,rice,cereals,seed corn,beans.
Rejects:subtle color difference,discolor product,foreign materials,spot defects
Application:small and medium sized applications ;product R&D;Laboratory use
Mini sorter specification
| M80 Specification | |||
| Model | M80 | ||
| Channels | 80 | ||
| Capacity(kg/h) | 1000-2500 | ||
| Power(kw) | 0.5 | ||
| Voltage(V) | 110-250V/50-60Hz | ||
| Sorting accuracy | 99.99% | ||
| Dimension(mm) | 400*1000*1000 | ||
| Air consumption(L/M) | 200-400 | ||
| Weight(kg) | 380 | ||
Remarks:
1. Sorting accuracy: The content of normal material granule in finished product material, after color sorting of the material containing different color granules.
2. The above color sorting performance takes about 2% rice or wheat as example. Specific indicator will change with different materials and impurities.
3. The product is updated without further notice, but the fact of machine will prevail.
