| Place of Origin: | China |
| Certification: | CSA,CE,3C,ISO9001,IS014001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden case and vacuum packing |
| Delivery Time: | 10 days |
| Payment Terms: | TT, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets per year |
| Sorting Accuracy: | 99.99% | CCD Camera Sensor: | Toshiba,5400 Pixels |
|---|---|---|---|
| Use: | Sorting Beans By Color And Shape,Good At Removing Wormhole | IoT: | With Remote Control |

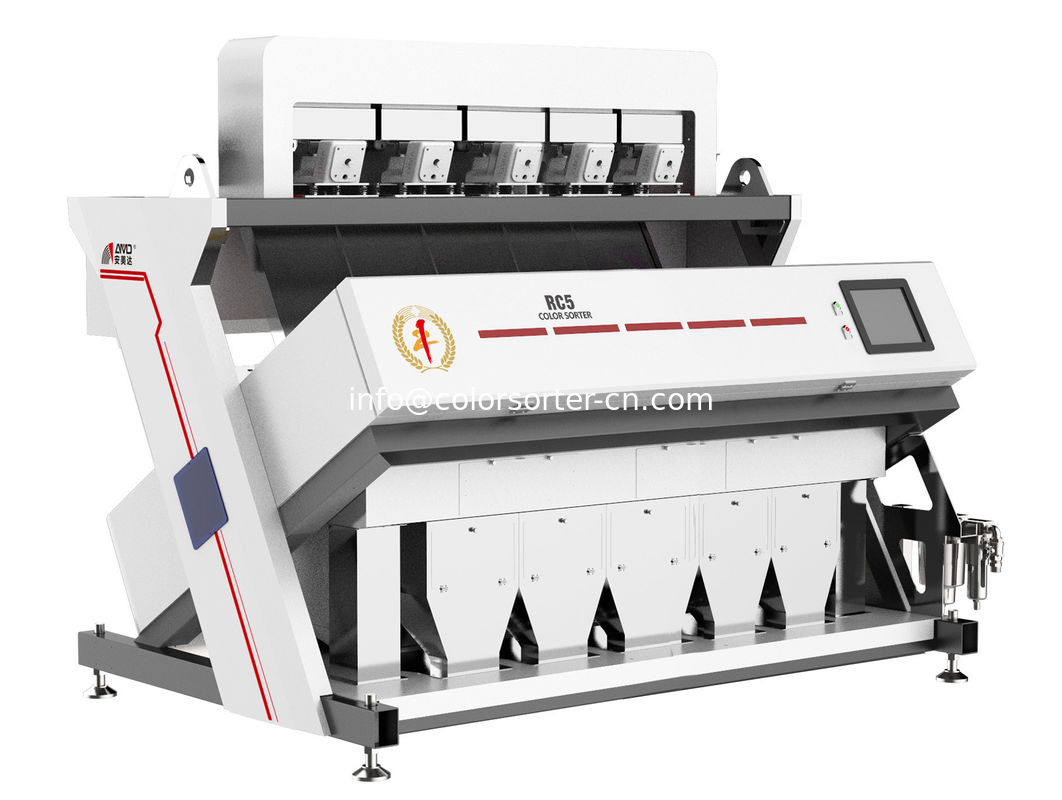

Beans Color Sorter
We are globally renowned exporter and manufacturer of Mung Beans Color Sorter Machine range that includes Hefei Color Sorting Machine,CCD Pluses Color Sorter,Kidney Beans Sorting Machine,etc.
The Pulses Color Sorter machine is ideal for Pulses processors who sort different varieties of dry beans:black beans,borlotti beans,flageolet beans,kidney beans,mung beans,soybeans, lentil,chickpea ,dry bean,dry pea and so on.The sorting range is suitable for processors who demand the highest in pulses quality,offering precision sorting to maximise yields and increase profits.
The Color Sorter is equipped with the latest in technological advances and intelligent features.It effectively detects such as discolored beans,broken,split beans,stones and sticks and remove them,leaving processors with a clean,safe and quality of beans.
Beans Color Sorter Machine specification
| Model | Capacity(T/H) | Carryover Ratio (Bad:Good) |
Accuracy (100%) |
Voltage (V/Hz) |
Power (KW) |
Weight(KG) | Dimensions(mm) |
| RC1 | 0.5-1.0 | >5:1 | ≥99.99% | 220/50 | 1 | 380 | 980*1564*1319 |
| RC2 | 1.0-2.0 | >10:1 | ≥99.99% | 220/50 | 1.7 | 830 | 1351.5*1800*1977.8 |
| RC3 | 2.0-3.5 | >20:1 | ≥99.99% | 220/50 | 2.3 | 1000 | 1665.5*1800*1977.8 |
| RC4 | 2.5-4.5 | >20:1 | ≥99.99% | 220/50 | 3 | 1180 | 1972.5*1800*1977.8 |
| RC5 | 3.0-6.0 | >20:1 | ≥99.99% | 220/50 | 3.7 | 1360 | 2295.5*1800*1977.8 |
| RC6 | 3.5-7.0 | >20:1 | ≥99.99% | 220/50 | 4.3 | 1550 | 2612.5*1800*1977.8 |
| RC7 | 4.0-8.0 | >20:1 | ≥99.99% | 220/50 | 5 | 1720 | 2928.5*1800*1977.8 |
| RC8 | 5.0-9.5 | >20:1 | ≥99.99% | 220/50 | 5.7 | 1950 | 3337.5*1800*1977.8 |
| RC10 | 6.0-12 | >20:1 | ≥99.99% | 220/50 | 7 | 2230 | 3873.5*1800*1977.8 |
| RC12 | 7.0-13 | >20:1 | ≥99.99% | 220/50 | 8.3 | 2610 | 4595.5*1800*1977.8 |
| This parameter takes wheat as an example (the impurity is 3%),The specific indicators vary due to different materials and impurities.If the product is updated without notice, Subject to the actual mechanical | |||||||
Some advantages of Color Sorter RC series
1,Near human eye vision color sorting technology, using 16 million colors, brings the best sorting performances
2,Full-color cameras optical system, with dimensional control of the defects, allows 0.1mm optical resolution
3,image acquisition allows the easy and accurate setting of the defects to remove. Software adjustment is completely automatic thanks to HSV technology
4,Shape-sizing integrated into the system
5,Most concentrated rejects, thanks to customized hi-tech ejectors
6,Highest production capacities, automatically regulated by a feeder control device
7,Possibility to have simultaneous product resort, even with reverse sorting and third sorting.
8,Possibility to add sloping chutes for sorter upgrading or production increase
9,Possibility to install additional cameras operating in NIR and InGaAs even after machine installation at working premises
10,Led lighting system which is digital control
11,Automatic cleaning system, with adjustable frequency and duration
12,Tilting optical boxes, to allow an easy internal access for maintenance operations
13,Airtight optical boxes with controlled temperature
14,Designed mechanics grants the highest hygiene and prevents product outflow or accumulation
15,Provision with de-dusting suction systems
16,14-inches display with full-color and multilingual touch-screen
17,Flexible and user-friendly
18,Reduced electric and compressed air consumption.
19,CSA and CE certification
20,Use best quality components to ensure excellent quality.
21,From 1 chute to 12 chutes to meet any different production capacity requirement
22,Remote control
Beans color sorting solution
1,the complete pulses:Designed for flexibility,Beans Color Sorter are capable of sorting multiple varieties of whole pulses at varying capacity requirements to match a customer's end product requirements.The machine can efficiently remove discoloured,splits ,spots and foreign material such as stones,sticks and mud balls.
2,whole and split pulses:Color Sorter effectively remove subtle discolouration and challenging close color defects such as brown,yellow,chalky,green and skin spots,delivering premium final product.
