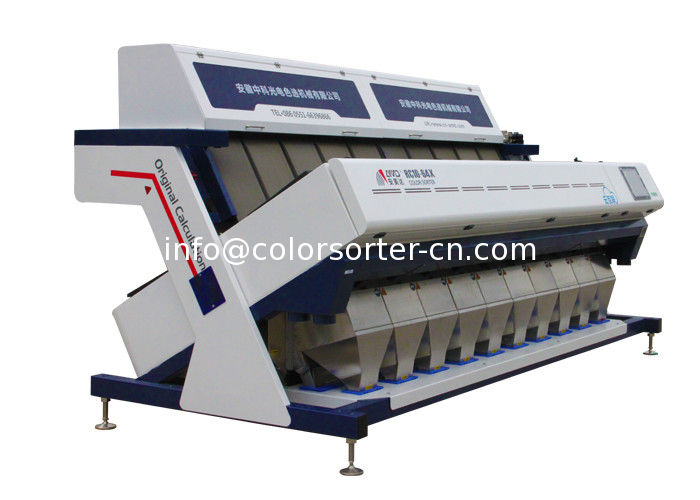

Clasificación óptica para el arroz, Rice Color Sorter Machine

Clasificación óptica para el arroz, Rice Color Sorter Machine

Clasificación óptica para el arroz, Rice Color Sorter Machine

Product Details:

Place of Origin: China
Certification: CE,3C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 0-100000USD
Packaging Details: Wooden case and vacuum packing
Delivery Time: 25 days after deposit or L/C
Payment Terms: TT, T/T, D/P, D/A, L/C
Supply Ability: 5000
Contact Now
Detailed Product Description
Application: Sorting Rice Sorting Accuracy: 99.99%
FPGA: ALTERA From USA, SAMSUNG Chip From Korea Camera Sensor: Toshiba From Japan
Air Filter: SMC From Japan Warranty: One Year

Clasificación óptica para el arroz, Rice Color Sorter Machine
High capacity rice color sorter machine for cost-effective rice sorting
High processing capacity Available with up to 16 chutes to deliver up to 30 tonnes per hour
LED Lighting Enhanced defect recognition through long-life LED solid state illumination
Custom-built cameras Front and rear high resolution CCD visible cameras to detect all common defect types.Equipped with custom-built cameras that can detect different color variations, spot defects including chalky, peck, pale, light
Auto-Calibration The optical sorter automatically reviews and adjusts the sorter set-up on start-up, removing the need for laborious manual set-up
Automatic Product Tracking The optical sorter consistently scans and automatically adjusts to changes in the incoming product
Balanced and Stable Performance Consistent accept quality and minimized product re-circulation maximize revenue and reduce wear on the optical sorter
Product Modes Up to 100 user-defined modes can be saved
Long life powerful ejectors 64 powerful, high speed ejectors per chute for accurate rejection of defects and high capacity
Fixed Background Static background ensures that all vibration is minimized
Durability and consistency
Combination of solid-state LED lighting system and long-life high speed ejectors, allows the optical sorter to operate at its
Flexible configuration
A modular system offering flexibility in sorting configuration - 7 chutes for onetime sorting; 4 chutes for primary and 3 recommended chutes for secondary sorting; 3 chute for primary + 2 chutes secondary and +2 recommended chutes for tertiary sorting.

Rice Color Sorter Machine specification

Model RC2 RC4 RC6
Throughput(T/H) 1.5~3 4~11 7~15
Channels 128 256 384
Chutes 2 4 6
Light Source Led Light Led Light Led Light
Pixel of Camera 2048 2048 2048
Color Sorting Accuracy ≥99.99% ≥99.99% ≥99.99%
Carryover rate ≥10:1 ≥10:1 ≥10:1
Power(KW) 0.8-2 1.2~3.0 1.6~4.0
Air pressure(Mpa) ≥0.6 ≥0.6 ≥0.6
Voltage(v) 220V/50HZ 220V/50HZ 220V/50HZ
Air consumption (L/min) 800-1300 1200-2500 1800-3600
Weight(kg) 700 1100 1500
Diamension(mm)L*W*H 1674* 1520*1800 1983*1520*1800 2655*1520*1800
Package wooden case wooden case wooden case
Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities

Remark:We have many models from 1 chute to 16 chutes for option to meet any different production capacity.
Standard procedure of color sorter’s operation can be described as follows:
Input product is loaded in the sorter via in-feed hopper.
With the help of vibration the material flows along the chute to the distribution channels.
Then the product gets into the inspection zone,where it is checked by the high-tech sensors or CCD-cameras.
Cameras ,having received the reflected light from the selected material,generate electric signal for computer operating system.
Clasificación óptica para el arroz, Rice Color Sorter Machine
What we can remove from the rice
Clasificación óptica para el arroz, Rice Color Sorter Machine

Reliable electronics hardware
The hardware is organized in easily replaceable electronic boards,
using the ultimate FPGA technology;
Self-control functions, such as auto-diagnosis and auto-calibration are standard on any sorters;
Back-up of the operating software by USB on board.
The high speed signal elaboration and communication to expulsion system allows an excellent performance.
ALTERA company's high-speed FPGA processing from USA
SAMSUNG chip from South Korea
TOSHIBA camera sensor from Japan
SMC air filter from Japan
Schneider air switch and button switch from France
Mean Well power supply from Taiwan
MATRIX ejector from Italy(optical)
Clasificación óptica para el arroz, Rice Color Sorter Machine
