Place of Origin: | China |
Certification: | CE,3C |
Minimum Order Quantity: | 1 |
---|---|
Price: | 15000-100000USD |
Packaging Details: | Wooden case and vacuum packing |
Delivery Time: | 25 days after deposit or L/C |
Payment Terms: | TT, T/T, D/P, D/A, L/C |
Supply Ability: | 1000 |
Application: | Sorting Rice | Sorting Accuracy: | 99.99% |
---|---|---|---|
FPGA: | ALTERA From USA, SAMSUNG Chip From Korea | Camera Sensor: | Toshiba From Japan |
Air Filter: | SMC From Japan | Warranty: | One Year |
Kharashka-oolka ah Capacity sare sorting.The cusub ZHONGKE Rice Color Sorter iyo doorashada kowaad ee Processor Rice doonaya Lahaanshaha, Hubinta iyo ka shaqeynayaan of dhaxalkooda indhaha kalabuxu iyo technology qiimo ah la awoodi karo.

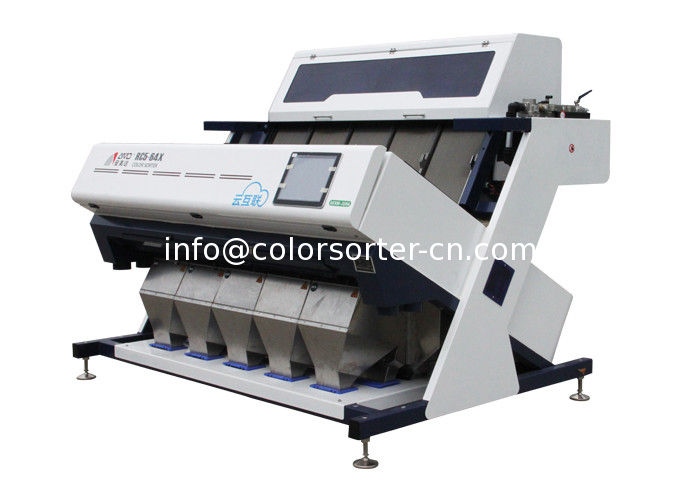

ZHONGKE Marie mashiinka Sorter midabka bariis waa fiican ee Processor Rice Sort noocyo kale duwan oo Rice iyo processing kala duwan oo kala duwan stages.The kalabuxu waxay ku haboon Processor oo kale ee ugu tayada sareeya Baahida bariis Marie, bixiya sax kala Bixinta kordhiyo in la kordhiyo wax-soosaarkooda iyo faa'iidada.
Qaydhiin Rice kalabuxu waxay:
Waa wax ku ool ah ka saaraysaa karaa cilladaha caadiga Hut iyo adag oo wax Dibadda, discolouredgrains, badar jeeso, oo xariijimo bran, ulo, dhagaxyo iyo Seeds Dibadda rabin, dhameysatay Sort direen, nadiif ah, iyo ammaan.
White Rice kalabuxu waxay:
Sort baxay, waxaannu nidhaahnaa, miraha cas, huruud ah, iyo cagaar, tamaashiir Rice, Rice qaan gaadhin iyo discolored, iyadoo badar blackspotted kaalinta yar 0.25mm.
Parboiled Rice kalabuxu
Waxaan xallin karnaa madow iyo badar, discolored, kuwa kale madow spotted.And kasta oo badar haleysan gubay.
Nidaamka Standard hawlgalka Sorter ayaa lagu tilmaami karaa sida soo socota:
saarka warbixinta oo ku raran yihiin in Sorter ka via in-feed hopper.With oo gargaar ka gariirka ee wax qulqulka weheliyaan kanaal hoos u janjeera, taageere si Qaybinta ee channels.Then Inspection sheyga galaa aagga, Halkee waxaa la hubiyaa by ugu dareemayaal farsmada sare ama CCD -cameras.Cameras, markaan nuurka ka muuqataa ka ah waxyaabaha la soo xulay helay, dhalin signal korontada nidaamka Computer Operating.
Reliable electronics hardware
The hardware is organized in easily replaceable electronic boards,
using the ultimate FPGA technology;
Self-control functions, such as auto-diagnosis and auto-calibration are standard on any sorters;
Back-up of the operating software by USB on board.
The high speed signal elaboration and communication to expulsion system allows an excellent performance.
ALTERA company's high-speed FPGA processing from USA
SAMSUNG chip from South Korea
TOSHIBA camera sensor from Japan
SMC air filter from Japan
Schneider air switch and button switch from France
Mean Well power supply from Taiwan
MATRIX ejector from Italy(optical)
Rice Color Sorter Machine specification
Model | RC-10 | RC-8 | RC-6 |
Channels | 640 | 512 | 384 |
Chute | 10 | 8 | 6 |
Throughput(T/H) | 16-30 | 12-24 | 8-16 |
Sorting Accuracy (%) | > 99.97 | >99.97 | >99.97 |
Optimized carryover(bad: good) | > 8:1 | >8:1 | >8:1 |
Channels preset for primary sorting and re-sorting | 448:192 | 384:128 | 256:128 |
Voltage (V) | ~220(50Hz) | ~220(50Hz) | ~220(50Hz) |
Power of the main machine (KW) | 3.2 | 3.0 | 2.2 |
Air Pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
Air Consumption (m³/min) | < 3.6 | <3.0 | <2.5 |
Weight (Kg) | 1100 | 900 | 850 |
Dimension (L x W x H)(mm) | 2595×1450×2127 | 2043×1410×2040 | 1920×1410×2040 |
Tacliiq: Waxaan leenahay noocyo badan 1 ilaa 16 Kumandooska kanaal hoos u janjeera, taageere u ah doorasho kasta si ay kulan Capacity saarka kala duwan.
rice color sorting samples
