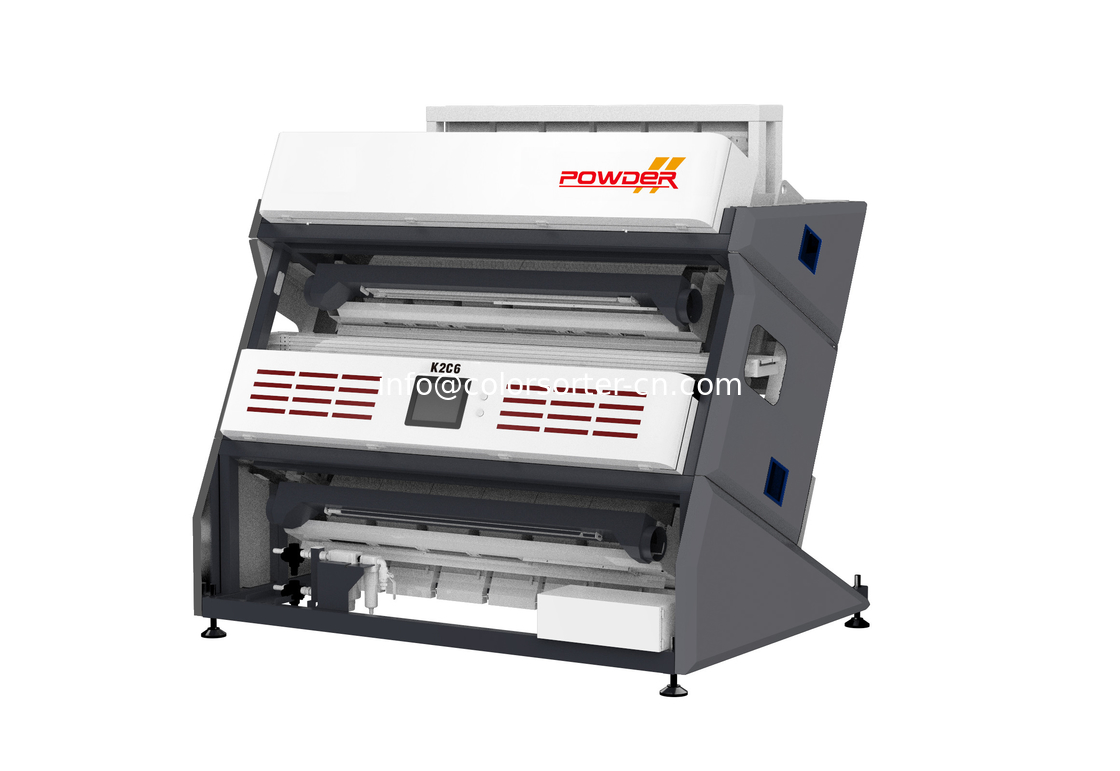

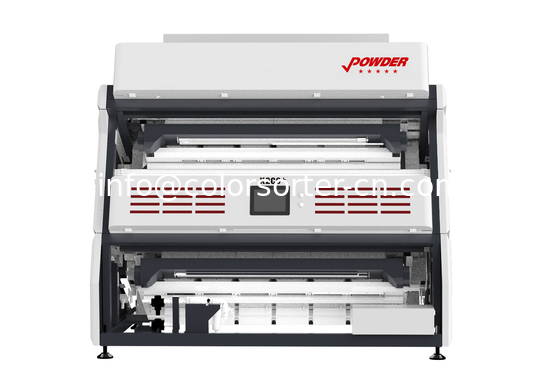

ore optical sorter for fine quartz sand(16-160mesh)

ore optical sorter for fine quartz sand(16-160mesh)

    • ore optical sorter for fine quartz sand(16-160mesh)
    • ore optical sorter for fine quartz sand(16-160mesh)
  • ore optical sorter for fine quartz sand(16-160mesh)

    Product Details:

    Contact Now
    Detailed Product Description

    An optical sorter for fine quartz sand is a machine equipped with optical sensors and sophisticated software algorithms designed to sort and classify particles of fine quartz sand based on various criteria such as size, shape, color, and optical properties. Here's how such a system typically works:

    • Particle Feeding: The fine quartz sand is fed onto a conveyor belt or chute, where it moves in a controlled manner towards the optical sorting area.
    • Optical Sensors: Optical sensors, such as cameras or lasers, scan the individual particles of quartz sand as they pass through the sorting area. These sensors can detect various characteristics of the particles, including size, shape, color, and transparency.
    • Data Analysis: The data captured by the optical sensors are analyzed in real-time by sophisticated software algorithms. These algorithms interpret the optical signals and make decisions about the characteristics of each particle.
    • Sorting Decision: Based on the predefined criteria set by the operator, the sorting system makes decisions about whether each particle meets the desired specifications. For example, it may determine whether a particle is of the right size, shape, or purity.
    • Sorting Mechanism: Once the sorting decision is made, the system activates a sorting mechanism to divert the particles into different streams. This could involve using air jets, mechanical paddles, or other mechanisms to separate the particles based on their characteristics.
    • Collection and Disposal: The sorted particles are collected in different containers or conveyors, depending on their classification. Those that meet the desired specifications may be collected for further processing or packaging, while others may be discarded as waste.


    Optical sorters offer several advantages for sorting fine quartz sand:


    • High Precision: Optical sensors can detect subtle differences in particle characteristics with high precision, allowing for accurate sorting.
    • High Speed: These systems can process large volumes of material quickly, making them suitable for industrial-scale operations.
    • Non-Destructive: Optical sorting is a non-destructive process, meaning it does not damage the particles being sorted.
    • Customizable: The sorting criteria can be easily customized and adjusted to meet specific quality requirements for different applications.


    Overall, optical sorters are an effective and efficient solution for sorting fine quartz sand, enabling manufacturers to achieve consistent quality and purity in their products.

    ore optical sorter for fine quartz sand
